Description

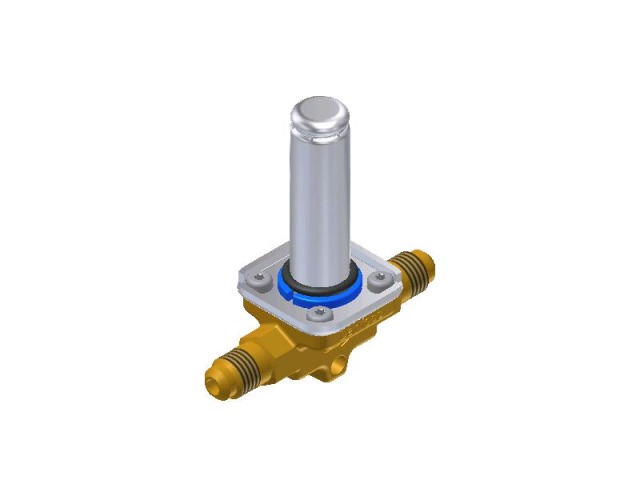

Solenoid Valve 1/4" Flare Without Coil EVR3
Contact us for more information
Solenoid Valve 1/4" Flare Without Coil EVR3
Product number:
RDB2107
| Product Group : | Danfoss Solenoid Valves |
|---|
General Information
| Product Group : | Danfoss Solenoid Valves |
|---|---|
| Function : | NC |
| Type : | EVR 3 |
Additional Info
| Family : | EVR |
|---|
Coils
| Coil : | No |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Flare |
| Inlet Connection Size : | 1/4 in, 6.00 mm |
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/4 in, 6.00 mm |
| Outlet Type : | Flare |
Kv Values
| Kv Value : | 0.270 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428093095 |
| Gross Weight : | 0.226 kg |
Measurements
| Net Weight : | 0.18 kg |
|---|---|
| Weight : | 0.18 kg |
Pressure
| Max OPD, 10W AC : | 38 Bar |
|---|---|
| Max Operating Pressure : | 45.2 Bar |
| Min OPD : | 0.000 Bar |
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature : | -40 - 80 °C |
|---|---|
| Ambient Temperature Range : | -40-80 °C |
| Medium Temperature Range : | -40-105 °C |
| Medium Temperature Range Note : | Defrost max 130°C/265°F |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 0.310 gal/min |
| Direction : | Straightway |
| Fluid Group : | 1, 2 |
| Orifice Size : | 3.30 mm |
| Valve Operation : | DIRECT |
