Description
SVA-S SS 25 D STR Stop Valve H/W PS52
Contact us for more information

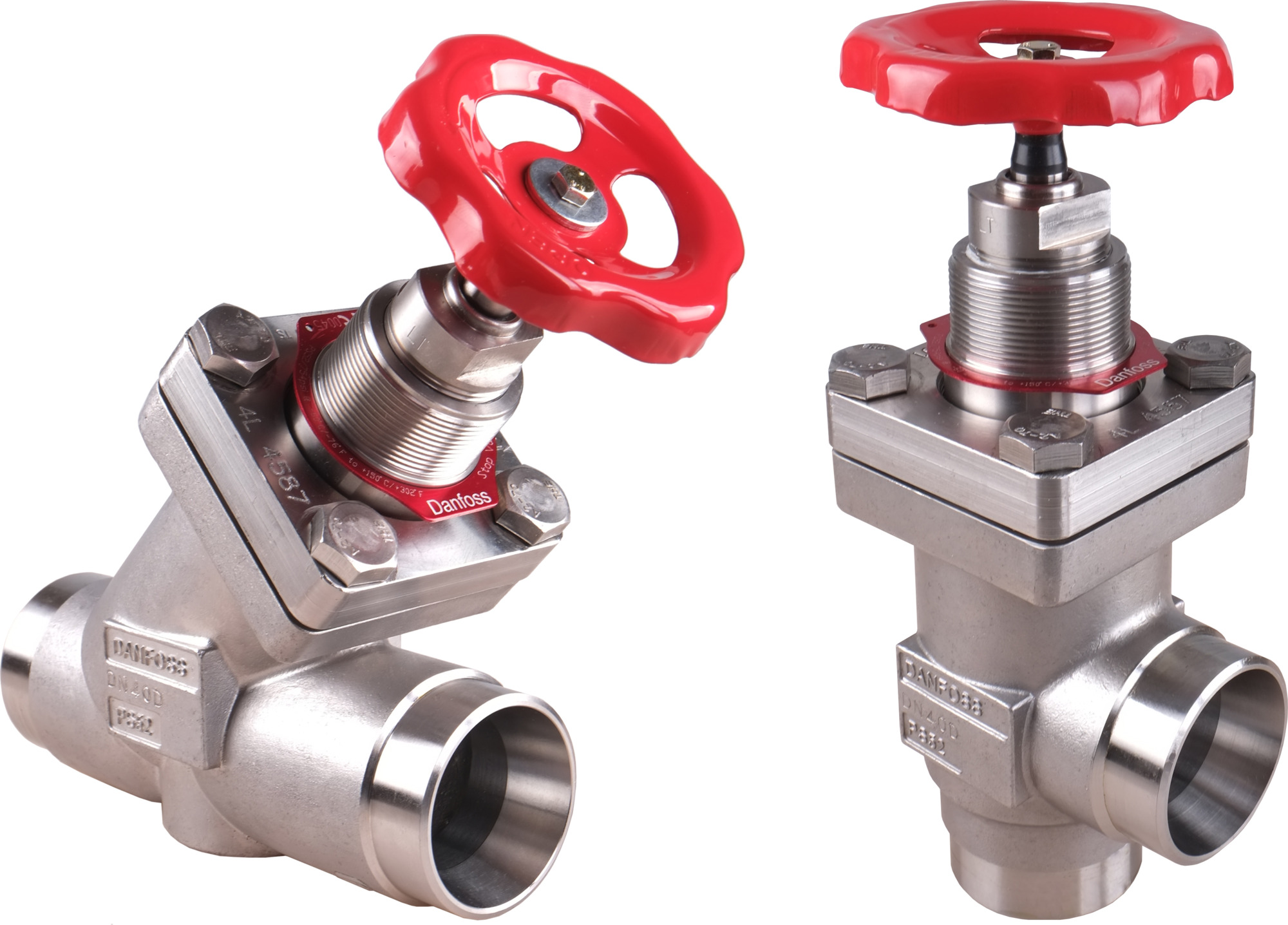

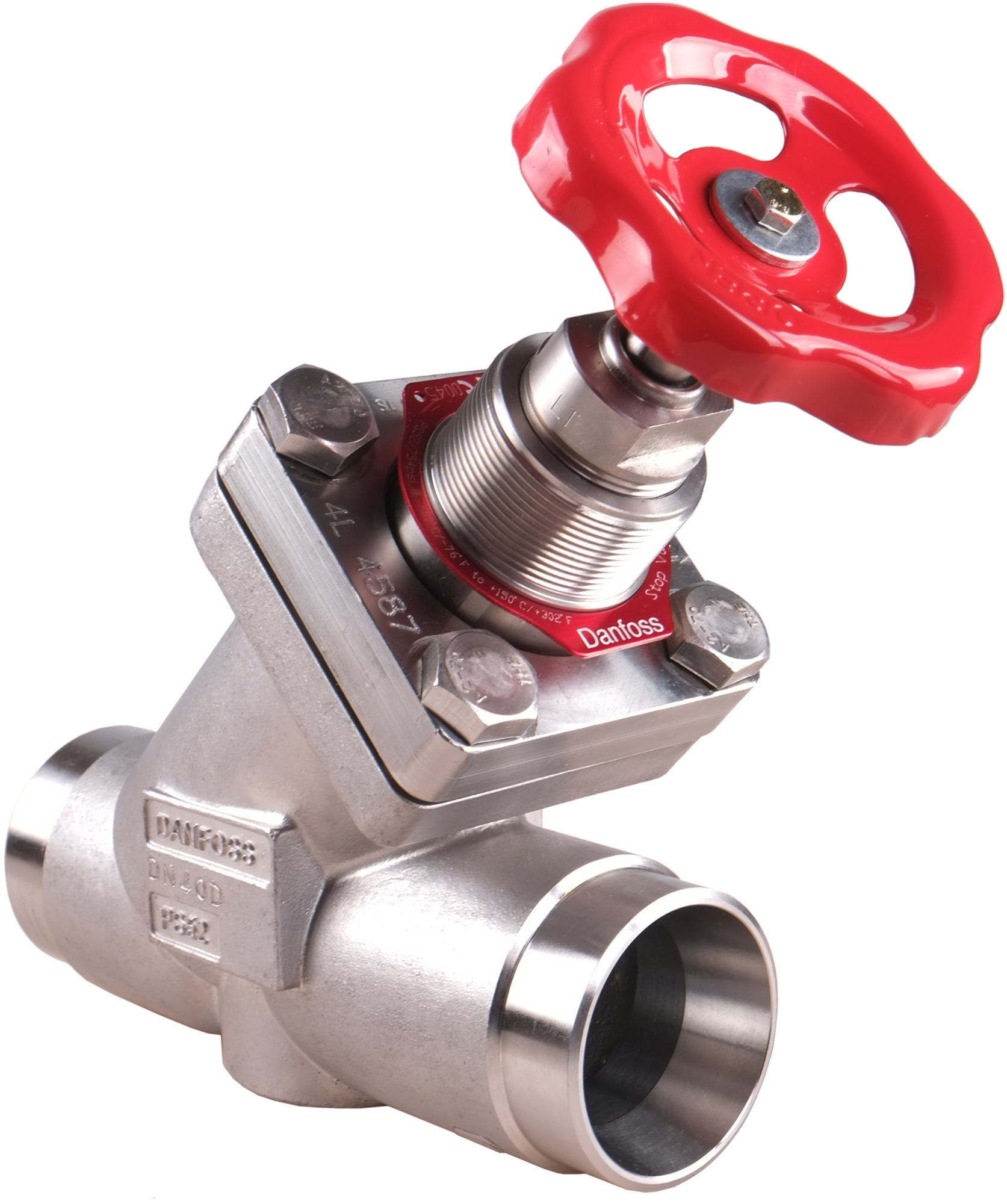

Shut-off valve SVA-S SS 25 Stainless steel
Product number:
RDB2217
| Product Group : | Danfoss Shut-off & Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Shut-off & Regulating Valves |
|---|---|
| Equipment : | Handwheel |
| Type : | SVA-S SS 25 |
Additional Info
| Family : | SVA SS straight |
|---|
Connections
| Inlet Connection Size : | 1 in, 25.0 mm |
|---|---|
| Inlet Type : | Butt weld |
| Outlet Connection Size : | 1 in, 25.0 mm |
| Outlet Type : | Butt weld |
Kv Values
| Kv Value : | 17.40 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818099 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428842297 |
| Gross Weight : | 3.832 kg |
Material
| Body Material : | Stainless Steel |
|---|---|
| Connection Material : | Stainless Steel |
Measurements
| Weight : | 3.40 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| CV Value : | 20.180 gal/min |
|---|---|
| Direction : | Straightway |
| Flow Direction : | Bi-flow |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1, 2 |
| Valve Version : | Standard version |
