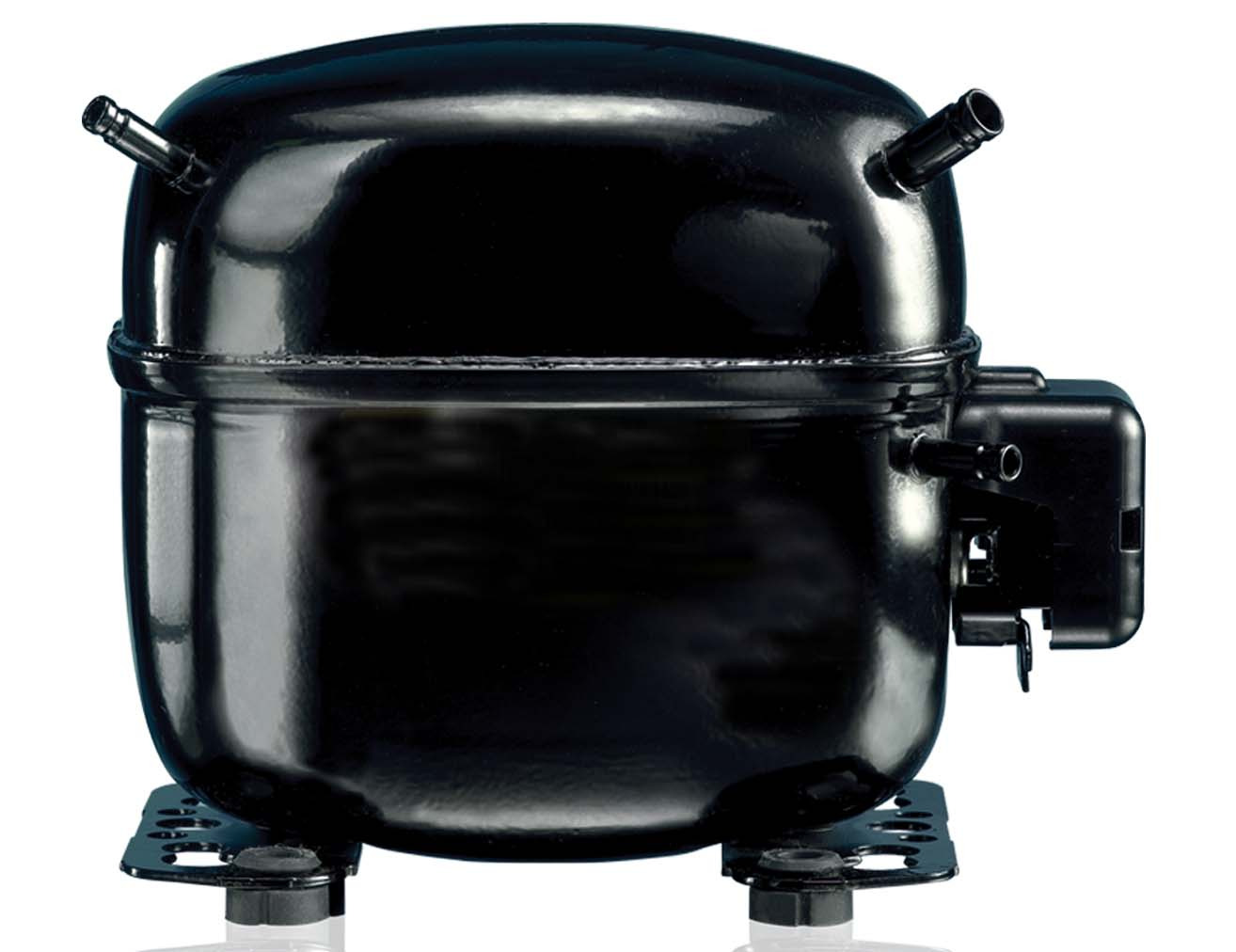

SC21G 5/8HP Compressor R134a HLBP 220V Stub Tube
Contact us for more information
SC21G 5/8HP Compressor R134a HLBP 220V Stub Tube
Product number:
RDL1321
| Product Group : | Light Commercial Compressors R134a, 220-240V, 50Hz |
|---|
General Information
| Product Group : | Light Commercial Compressors R134a, 220-240V, 50Hz |
|---|---|
| Application : | HBPLBPMBP |
| Colour : | Black |
| Model Number : | SC21G |
| Type : | Reciprocating compressor |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Free Gas Volume : | 1460 cm³ |
|---|---|
| Power Supply Compressor : | 220/1/50 220/1/60 V/Ph/Hz |
| Run Capacitor : | 10 µF |
| Start Capacitor : | 80 µF |
| Swept Volume : | 20.95 cm³ |
| Technique : | Reciprocating |
Connections
| Discharge Connection Height : | 100 mm |
|---|---|
| Discharge Line Connection : | 6.2 mm |
| Suction Connection Height : | 183 mm |
| Suction Port Diameter : | 10.2 mm |
Electrical
| Cut In Current HST : | 22.1 A |
|---|---|
| Frequency : | 50/60 Hz |
| LRA : | 22.1 A |
| LRA HST : | 22.1 A |
| LRA HST 60Hz : | 22.10 A |
| Phase : | 1 |
| Power Supply : | 50 Hz |
| RLA : | 3.90 A |
| Voltage : | 220 V |
| Voltage 50Hz : | 220 V |
| Voltage 60Hz : | 220 V |
Material
| Connection Material : | Copper |
|---|---|
| Discharge Connection Material : | Copper |
| Suction Connection Material : | Copper |
Measurements
| Height : | 209 mm |
|---|---|
| Length : | 255 mm |
| Net Weight : | 13.77 kg |
| Weight : | 13.77 kg |
| Width : | 151 mm |
Motor
| Motor Type : | CSR |
|---|
Oil
| Oil Charge : | 550 cm³ |
|---|---|
| Oil Type : | POE |
Refrigerant
| Max Refrigerant Charge : | 1.30 kg |
|---|---|
| Refrigerant : | R134a, R513A |
