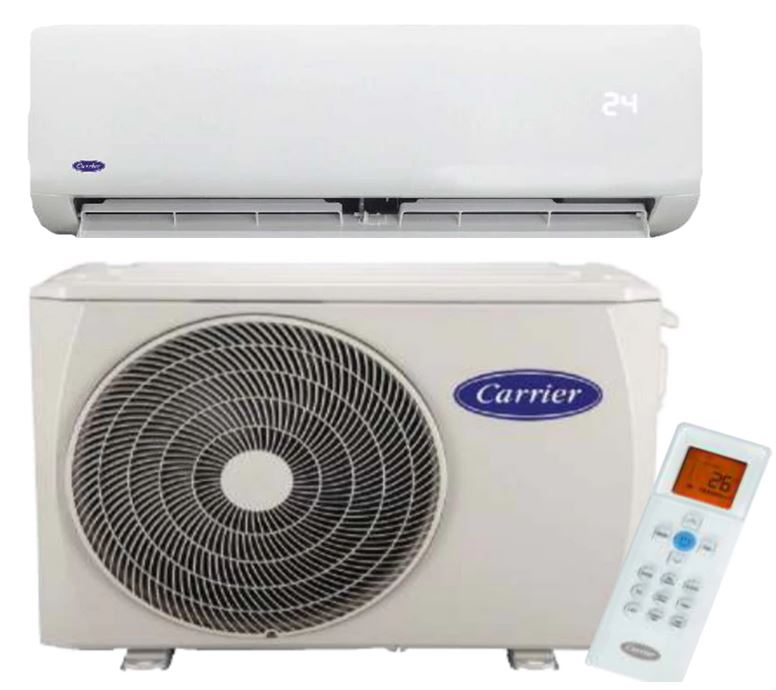

QHG35N 12000btu R410A Hiwall Split Fixed Speed
Contact us for more information
QHG35N 12000btu R410A Hiwall Split Fixed Speed
Product number:
QHG35N
| Product Group : | Carrier Fixed Speed |
|---|
General Information
| Product Group : | Carrier Fixed Speed |
|---|---|
| Model Number : | QHG35N |
| Remote Control : | Infrared |
| Type : | Hi-Wall Fixed Speed System |
Air Volume/Air Flow
| Air Flow Cooling (Low/Medium/High) : | 570/500/380 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 3.5 kW |
|---|
Electrical
| Max Current : | 9.0 A |
|---|---|
| Power Consumption : | 1750 W |
| Power Supply : | 220-240 V |
Energy Efficiency/Performance
| COP : | 3.61 |
|---|---|
| EER : | 3.01 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 3.52 kW |
|---|
Measurements
| Height : | 295 mm |
|---|---|
| Weight : | 9.3 kg |
| Width : | 802 mm |
Pipes
| Max Height Difference : | 8 m |
|---|---|
| Max Piping Length : | 10 m |
Refrigerant
| Refrigerant : | R410A |
|---|---|
| Refrigerant Charge : | 0.65 kg |
| Refrigerant Pipe Size : | 1/2 in, 1/4 in |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 28.5/36/41 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | 16~32 °C |
|---|---|
| Temperature Range Heating : | 0~30 °C |
