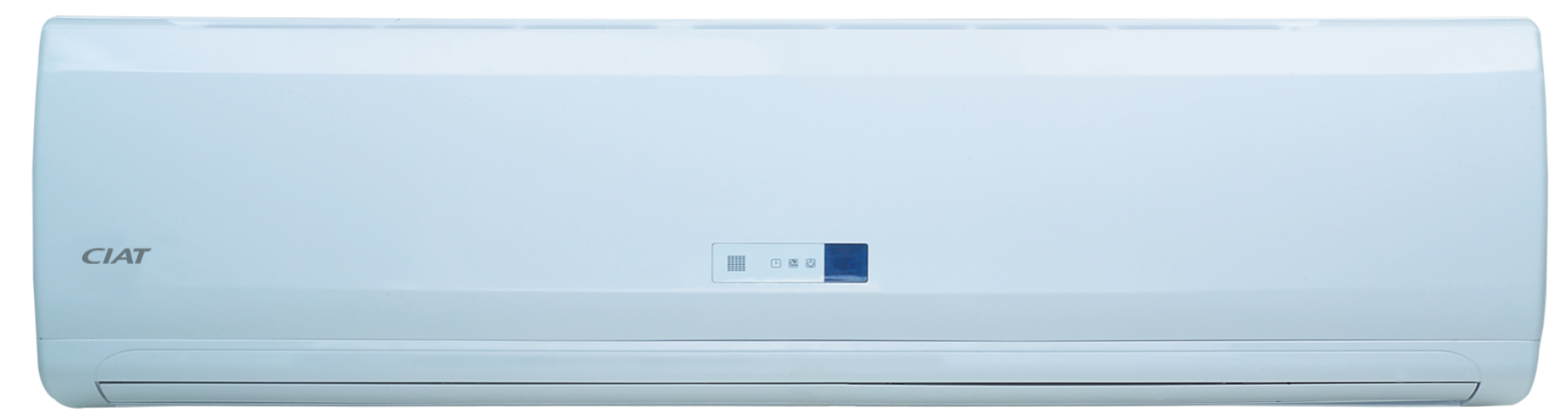

QHF036DS-1 36000Btu/h DC Inverter High-Wall Split
Contact us for more information
QHF036DS-1 36000Btu/h DC Inverter High-Wall Split
Product number:
QHF036DS-1
| Product Group : | Carrier Inverter |
|---|
General Information
| Product Group : | Carrier Inverter |
|---|---|
| Model Number : | QHF036DS-1 |
| Type : | High Wall |
Air Volume/Air Flow
| Air Flow (Low/Medium/High) : | 3800 m³/h |
|---|
Connections
| Pipe Diameter Gas Side : | 5/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 3/8 in |
Cooling Capacity
| Cooling Capacity : | 10.1 kW |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|
Energy Efficiency/Performance
| COP : | 3.27 W |
|---|---|
| EER : | 3.13 W |
Heating Capacity
| Heating Capacity : | 10.3 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 283 mm |
|---|---|
| Height (IU) : | 362 mm |
| Width (IU) : | 1259 mm |
Logistical Information
| Gross Weight : | 26.5 kg |
|---|---|
| Packaging Height : | 362 mm |
| Packaging Length : | 283 mm |
| Packaging Width : | 1340 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Piping Length : | 40 m |
| Min Piping Length : | 3 m |
| Standard Piping Length : | 5 m |
Refrigerant
| Additional Charge : | 30 g/m |
|---|---|
| Refrigerant : | R410A |
| Refrigerant Charge : | 3.5 kg |
Sound Power/Pressure
| Sound Power Level : | 66 dB(A) |
|---|---|
| Sound Pressure Level : | 52 dB(A) |
