Description
9000Btu/h DC Inverter H/Wall Heat Pump Unit R32
Contact us for more information

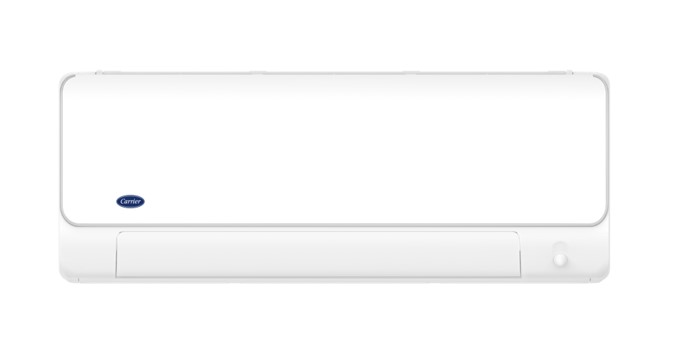

QHE09D8SH 9000Btu/h DC Inverter H/Wall Heat Pump Unit R32
Product number:
QHE09D8SH
| Product Group : | Carrier Inverter |
|---|
General Information
| Product Group : | Carrier Inverter |
|---|---|
| Model Number : | QHE09D8SH |
Connections
| Pipe Diameter Gas Side : | 3/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity
| Cooling Capacity : | 2.64 kW |
|---|
Electrical
| Max Current : | 10.5 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.51 |
|---|---|
| EER : | 4.7 |
| SCOP : | 6.0 |
| SEER : | 9.0 |
Heating Capacity
| Heating Capacity : | 3.00 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 225 mm |
|---|---|
| Height (IU) : | 295 mm |
| Width (IU) : | 795 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Piping Length : | 25 m |
| Min Piping Length : | 3 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Sound Power/Pressure
| Sound Power Level : | 60 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~50 °C |
|---|---|
| Temperature Range Heating : | -15~24 °C |
