Description

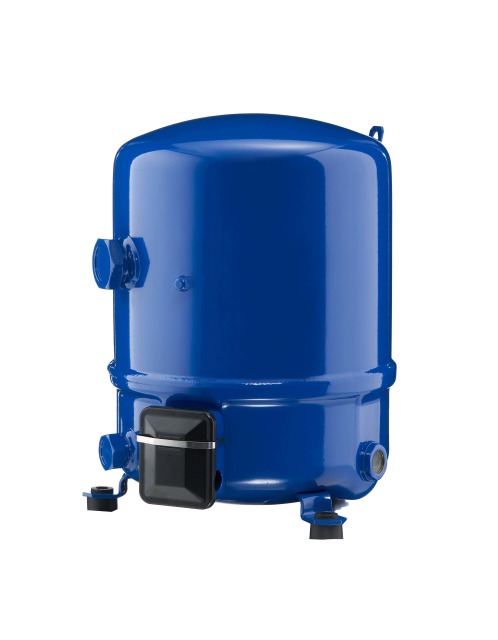

NTZ048-4B
Contact us for more information
NTZ48A4LR1B DANFOSS 120F0226
Product number:
RDM4022
| Product Group : | NTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz |
|---|
General Information
| Product Group : | NTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz |
|---|---|
| Colour : | Blue |
| Model Number : | NTZ048A4LR1B |
| Number Of Cylinders : | 1 |
| Type : | NTZ |
Additional Info
| Family : | NTZ |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 48.00 cm³ |
| Technique : | Reciprocating |
Connections
| Connection Type : | Rotolock |
|---|---|
| Discharge Connection Height : | 68 mm |
| Discharge Connection Pipe Size : | 1/2 in |
| Discharge Connection Size : | 1 in |
| Discharge Line Connection : | 1 in |
| Rotolock Discharge Line Connection : | 1 in |
| Rotolock Suction Connection : | 1 1/4 in |
| Suction Connection Height : | 263 mm |
| Suction Connection Pipe Size : | 5/8 in |
| Suction Connection Size : | 1 1/4 in |
Electrical
| Frequency : | 50 Hz |
|---|---|
| IP Class : | IP55 |
| LRA : | 16 A |
| MCC : | 4.8 A |
| Phase : | 3 |
| Power Supply : | 380-400/3/50 - 460/3/60 V/Ph/Hz |
| RLA : | 3.4 A |
| Voltage : | 400/460 V |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | FRA |
| EAN : | 5702428521086 |
| Gross Weight : | 22.75 kg |
Measurements
| Diameter : | 224 mm |
|---|---|
| Height : | 333 mm |
| Length : | 224 mm |
| Net Weight : | 21 kg |
| Weight : | 21.00 kg |
| Width : | 224 mm |
Oil
| Oil Charge : | 0.95 L |
|---|---|
| Oil Equalization : | 3/8'' flare SAE |
| Oil Type : | 175PZ |
Pressure
| Higher Active Pressure : | 28.5 Bar |
|---|---|
| Lower Active Pressure : | 22.6 Bar |
Refrigerant
| Max Refrigerant Charge : | 2.50 kg |
|---|---|
| Refrigerant : | R404A, R452A, R454C, R455A |
| Refrigerant Charge : | 2.5 kg |
