Description

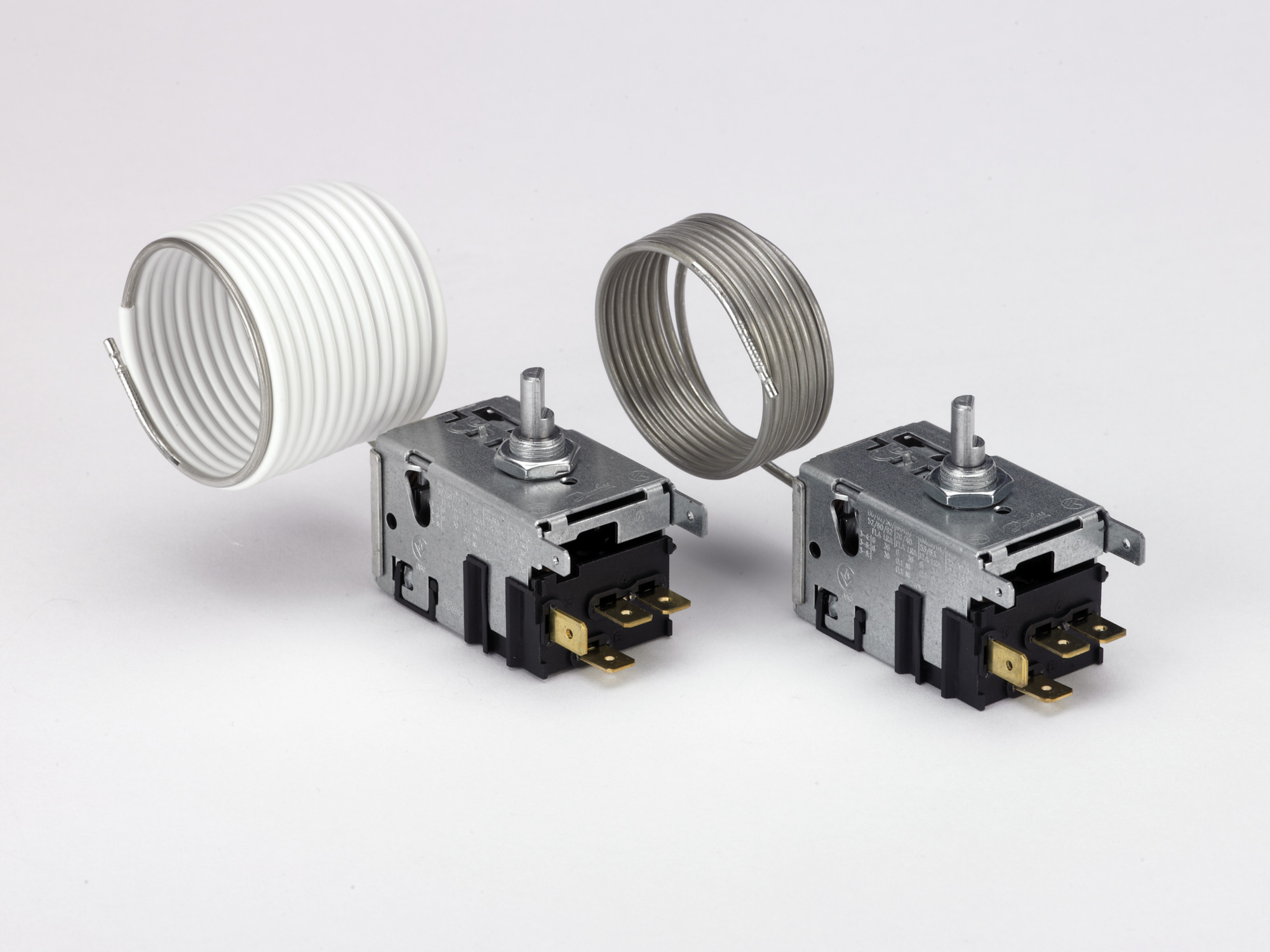

077B Service thermostat no. 3
Contact us for more information
N3 Thermos Kit 077B7003
Product number:
RDH1006
| Product Group : | Service thermostats |
|---|
General Information
| Product Group : | Service thermostats |
|---|---|
| Type : | B62 |
| Used For : | Refrigerators; with automatic defrost |
Additional Info
| Family : | 077B |
|---|
Electrical
| Contact Function : | NC |
|---|
Logistical Information
| Commodity Code : | 90321080 |
|---|---|
| Country Of Origin : | SVK |
| EAN : | 5702424006570 |
| Gross Weight : | 0.148 kg |
Measurements
| Capillary Tube Length : | 63.0 in, 1600 mm |
|---|---|
| Net Weight : | 0.12 kg |
| Weight : | 0.12 kg |
Standards
| Approval : | BEAB, CE, CMIM, EAC, LLC CDC TYSK, cURus |
|---|
Temperature
| Cold Cut In : | 3.5 °C |
|---|---|
| Cold Cut Out : | -27.5 °C |
| Warm Cut In : | 3.5 °C |
| Warm Cut Out : | -11.0 °C |
| File name | Extension | Size |
|---|---|---|
| Brochures | 3.2 MB | |
| Conformity Declaration | 780.37 KB | |
| Conformity Declaration | 5.22 MB | |
| Technical Literature | 526.23 KB | |
| Conformity Declaration | 54.09 KB | |
| Conformity Declaration | 67.82 KB | |
| Technical Literature | 1.95 MB |
