Description

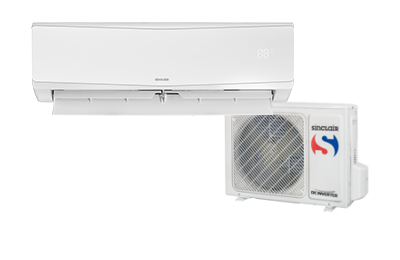

Keyon Hi-Wall Inverter 9000 BTU R32 Set
Contact us for more information
Keyon Hi-Wall Inverter 9000 BTU R32 Set
Product number:
SUH09BIK
| Product Group : | Sinclair |
|---|
General Information
| Product Group : | Sinclair |
|---|---|
| Model Number : | SUH09BIK |
| Type : | Hi-Wall |
Air Volume/Air Flow
| Air Flow : | 550 m³/h |
|---|---|
| Air Flow (IU) Low/Medium/High : | 280/400/550 m³/h |
Compressor
| Compressor Model : | QXF-A082zC170 |
|---|
Connections
| Pipe Diameter Gas Side : | 3/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity
| Cooling Capacity : | 2700 W |
|---|
Electrical
| Power Supply : | 220-240 V |
|---|
Energy Efficiency/Performance
| COP : | 3.98 |
|---|---|
| EER : | 3.63 |
Heating Capacity
| Heating Capacity : | 2800 W |
|---|

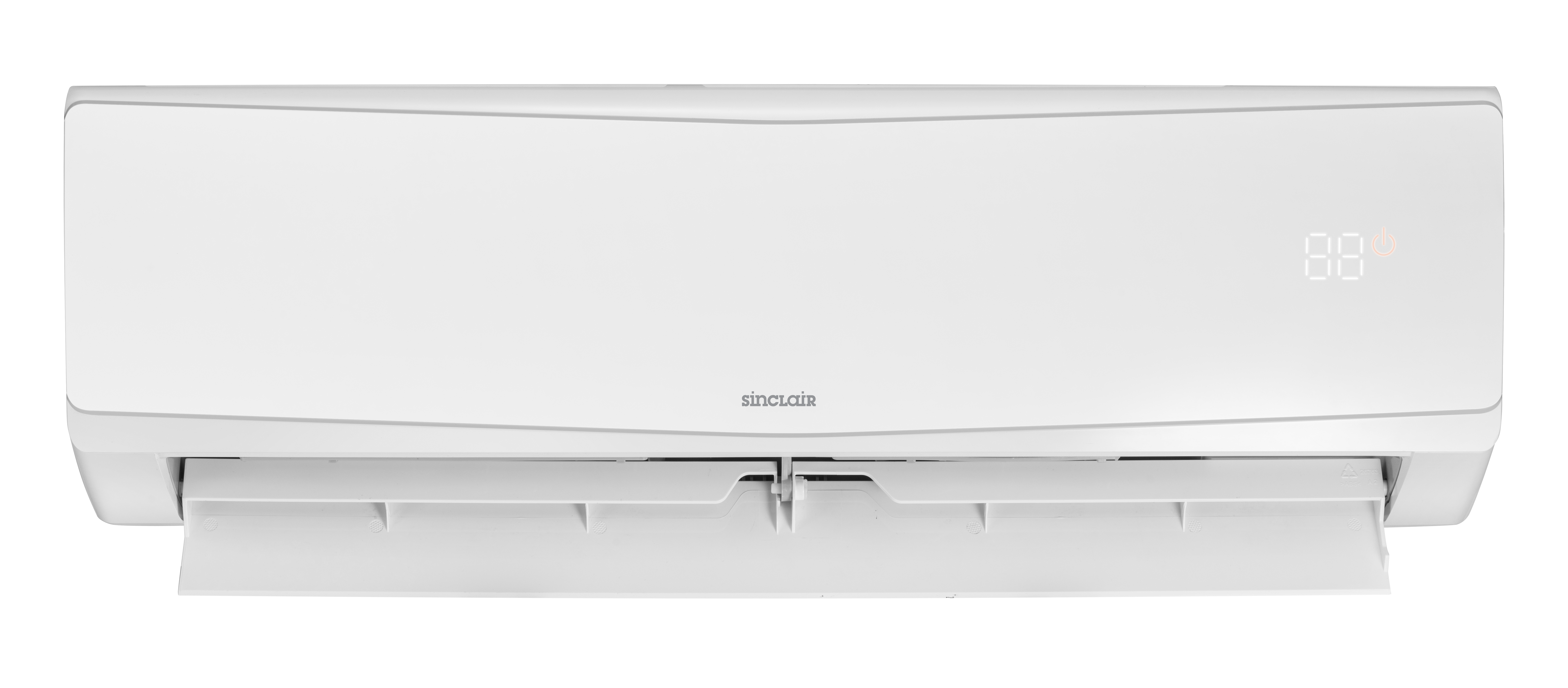

Indoor Unit Attributes
| Depth (IU) : | 190 mm |
|---|---|
| Height (IU) : | 251 mm |
| Weight (IU) : | 8 kg |
| Width (IU) : | 770 mm |
Logistical Information
| Gross Weight : | 9.5 kg |
|---|---|
| Packaging Height : | 262 mm |
| Packaging Length : | 822 mm |
| Packaging Width : | 324 mm |
Measurements
| Height : | 251 mm |
|---|---|
| Weight : | 8.5 kg |
| Width : | 770 mm |

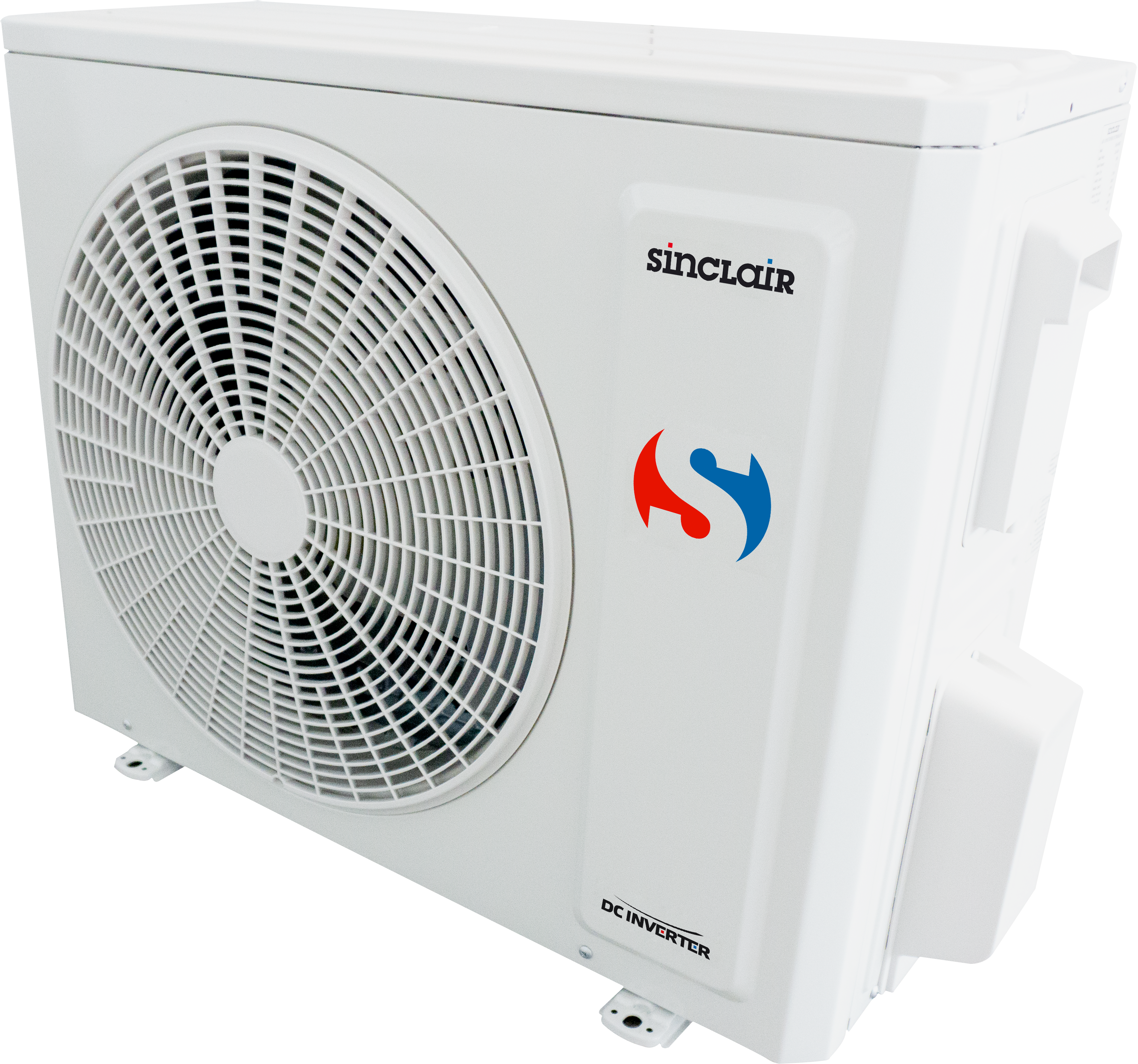

Outdoor Unit Attributes
| Depth (OU) : | 330 mm |
|---|---|
| Height (OU) : | 555 mm |
| Sound Pressure Level (OU) : | 51 dB(A) |
| Weight (OU) : | 24.5 kg |
| Width (OU) : | 732 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Piping Length : | 15 m |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 0.5 kg |
Sound Power/Pressure
| Sound Pressure Level : | 40 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~43 °C |
|---|---|
| Temperature Range Heating : | -15~24 °C |
| File name | Extension | Size |
|---|---|---|
| User Manual | 2.78 MB | |

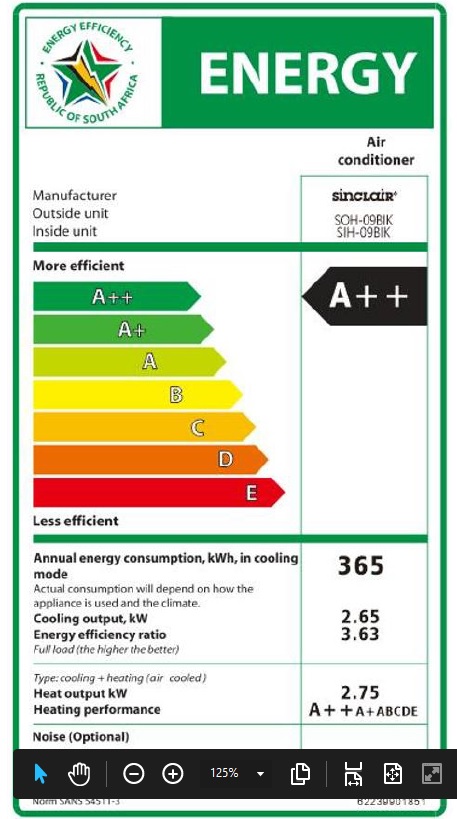

| Energy Label | png | 215.92 KB |
| Brochures | 171.8 KB | |
| Installation Manual | 2.68 MB |
Accessory
Set Component Parts
