Description
Keyon Hi-Wall Inverter 24000 BTU R32 Set
Contact us for more information
Keyon Hi-Wall Inverter 24000 BTU R32 Set
Product number:
SUH24BIK
| Product Group : | Sinclair |
|---|
General Information
| Product Group : | Sinclair |
|---|---|
| Model Number : | SUH24BIK |
| Type : | Hi-Wall |
Air Volume/Air Flow
| Air Flow : | 1100 m³/h |
|---|
Compressor
| Compressor Model : | FTz-SM151AXBD |
|---|
Connections
| Pipe Diameter Gas Side : | 1/2 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity
| Cooling Capacity : | 6100 W |
|---|
Electrical
| Power Supply : | 220-240 V |
|---|
Energy Efficiency/Performance
| COP : | 3.95 |
|---|---|
| EER : | 3.5 |
Heating Capacity
| Heating Capacity : | 6400 W |
|---|
Indoor Unit Attributes
| Depth (IU) : | 248 mm |
|---|---|
| Height (IU) : | 325 mm |
| Net Weight (IU) : | 36.4 kg |
| Width (IU) : | 1081 mm |
Logistical Information
| Gross Weight : | 19.5 kg |
|---|---|
| Packaging Height : | 334 mm |
| Packaging Length : | 1137 mm |
| Packaging Width : | 407 mm |
Measurements
| Height : | 300 mm |
|---|---|
| Weight : | 13.5 kg |
| Width : | 972 mm |
Outdoor Unit Attributes
| Depth (OU) : | 376 mm |
|---|---|
| Height (OU) : | 555 mm |
| Width (OU) : | 873 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Piping Length : | 25 m |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 1.3 kg |
Sound Power/Pressure
| Sound Pressure Level : | 47 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~43 °C |
|---|---|
| Temperature Range Heating : | 15～24 °C |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 317.13 KB | |

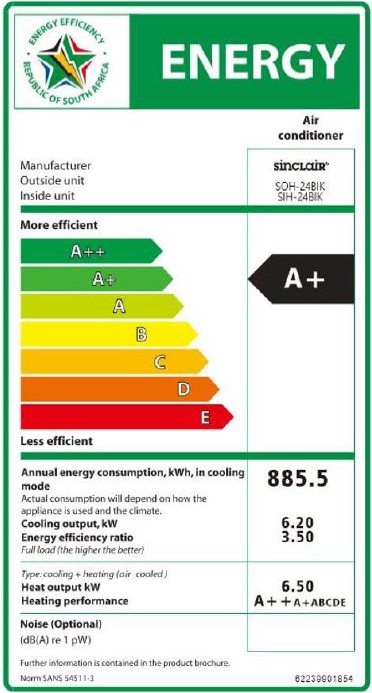

| Energy Label | png | 215.92 KB |
| Brochures | 171.8 KB | |
| Owners Manual | 2.78 MB | |
| Installation Manual | 2.68 MB |
Accessory
Set Component Parts
