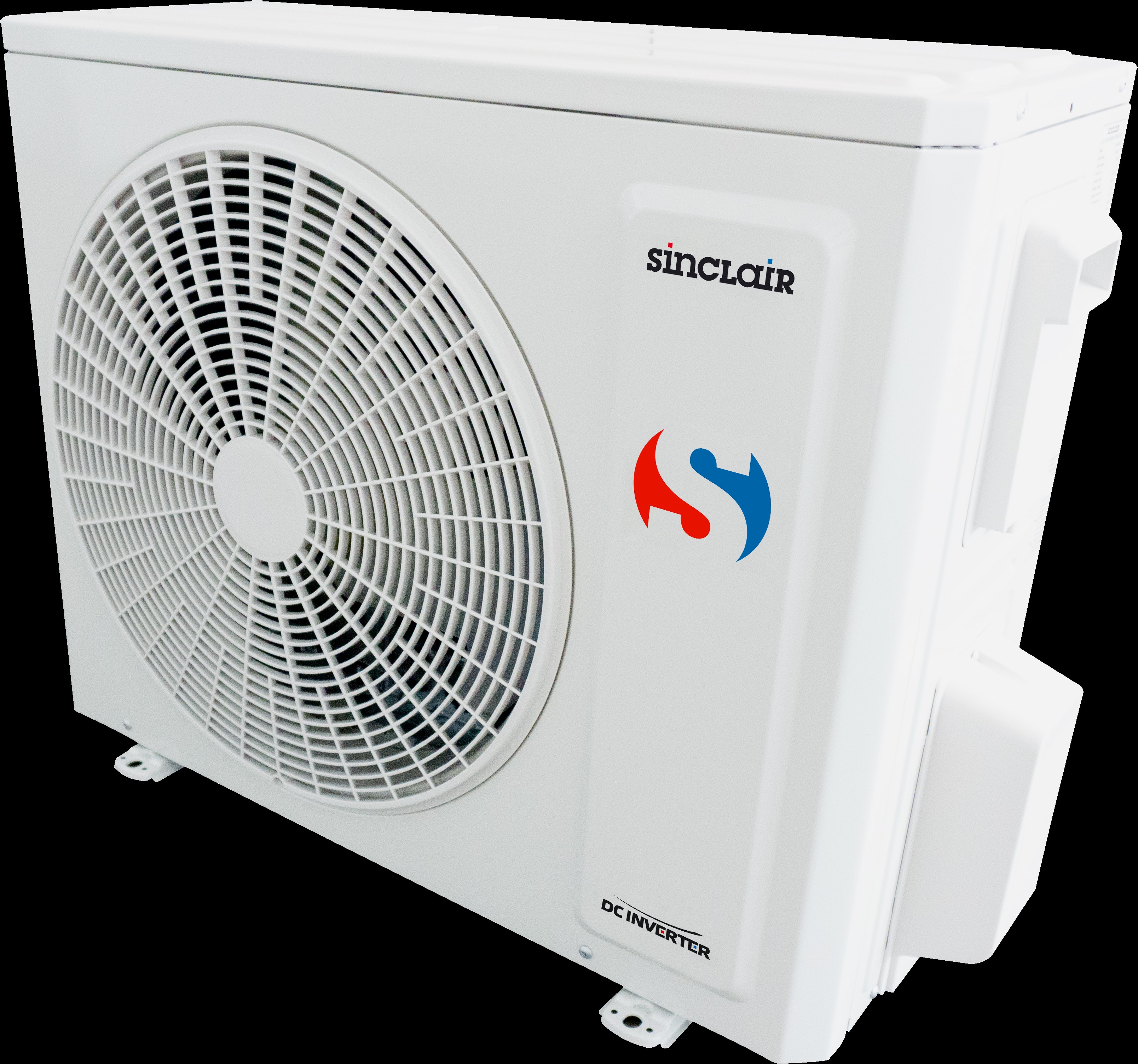

Keyon Hi-Wall Inverter 24000 BTU R32 Condenser
Contact us for more information
Keyon Hi-Wall Inverter 24000 BTU R32 Condenser
Product number:
SOH24BIK
This product requires F-Gas certificate
| Product Group : | Sinclair Highwall - Outdoor |
|---|
General Information
| Product Group : | Sinclair Highwall - Outdoor |
|---|---|
| Colour : | White |
| Dehumidification : | 1.8 L/h |
| Model Number : | 053011000004365 |
| Type : | Hi-Wall Inverter Condenser |
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor |
|---|---|
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single split |
Air Volume/Air Flow
| Air Flow : | 2800 m³/h |
|---|
Cable
| Communication Cable : | 4 x 0.75 (5m included) |
|---|---|
| Recommended Power Cable : | 3 x 1.5 |
Compressor
| Compressor Model : | FTz-SM151AXBD |
|---|
Connections
| Drain Connection Size : | 16 mm |
|---|---|
| Pipe Diameter Gas Side : | 12 mm |
| Pipe Diameter Liquid Side : | 6 mm |
Cooling Capacity
| Cooling Capacity : | 6.2 kW |
|---|
Electrical
| Annual Power Consumption : | 319/1645 kWh |
|---|---|
| Current (Cooling) : | 7.9 A |
| Current (Heating) : | 7.3 A |
| Input (Cooling) : | 1771 W |
| Input (Heating) : | 1646 W |
| MRA : | 9.7 |
| Max Current : | 9.7 A |
| Max Power Input : | 2200 W |
| Power Input (Heating/Cooling) : | 1.77/1.65 kW |
| Power Supply : | 220 - 240/1/50 V/Ph/Hz |
| Recommended Fuse : | 10.0 A |
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.95 |
|---|---|
| EER : | 3.5 |

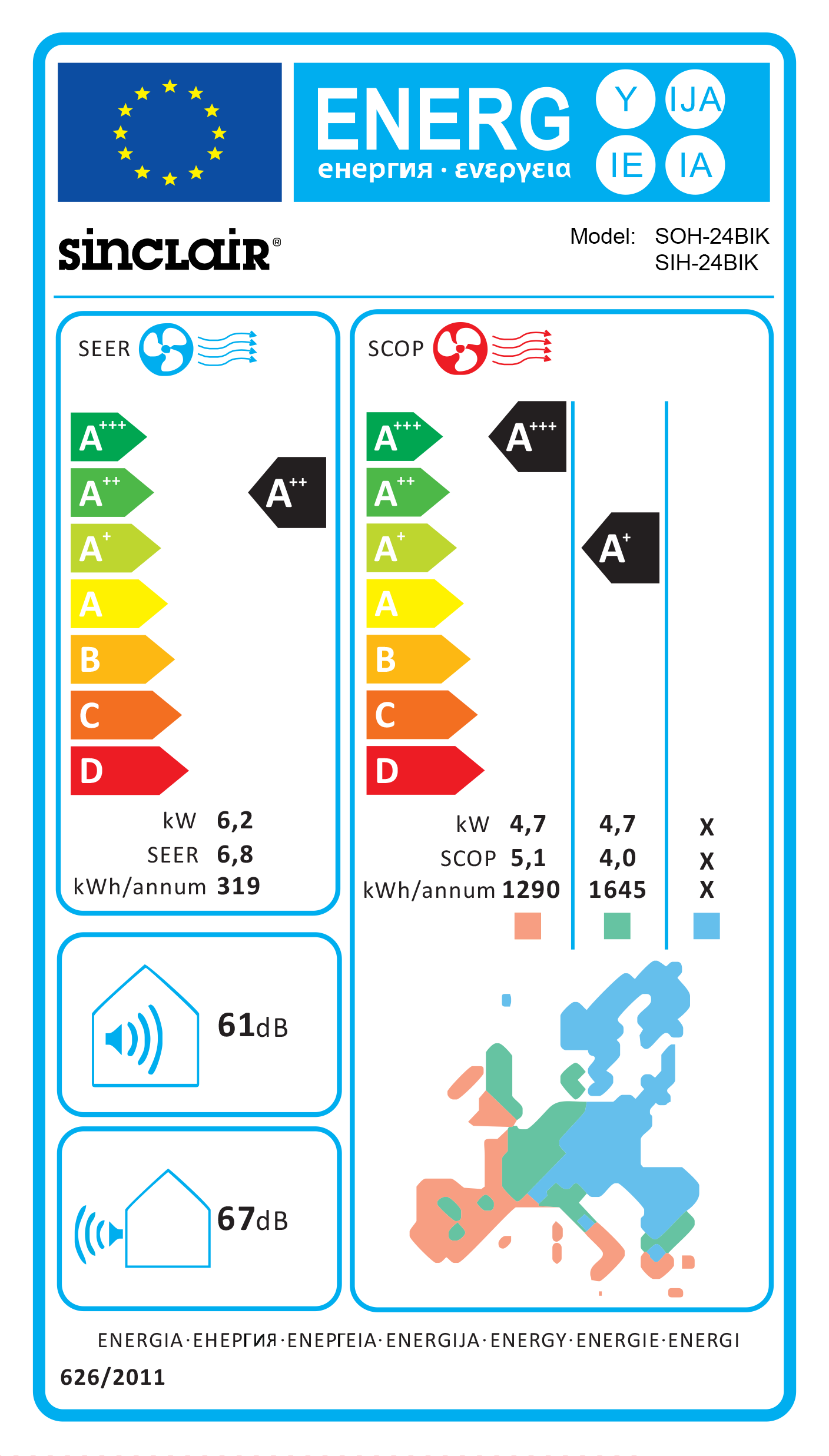

| Energy Label (Cooling) : | A++ |
| Energy Label (Heating) : | A+++/A+ |
| SCOP : | 5.1/4.0/- |
| SEER : | 6.8 |
Fan
| Number Of Fans : | 1 |
|---|
Heating Capacity
| Heating Capacity : | 6.5 kW |
|---|---|
| P Design Heating Capacity (Average) : | 4.7 kW |
Logistical Information
| Gross Weight : | 39.5 kg |
|---|
Measurements
| Depth : | 376 mm |
|---|---|
| Height : | 555 mm |
| Net Weight : | 36.5 kg |
| Weight : | 36.5 kg |
| Width : | 873 mm |
Outdoor Unit Attributes
| Depth (OU) : | 376 mm |
|---|---|
| Height (OU) : | 555 mm |
| Sound Pressure Level (OU) : | 58 dB(A) |
| Width (OU) : | 873 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Height Difference (Outdoor is Higher/Lower) : | 10 m |
| Max Pipe Length Without Additional Refrigerant : | 5 m |
| Max Piping Length : | 25 m |
| Min Piping Length : | 3 m |
| Standard Piping Length : | 5 m |
| Total Pipe Length Range : | 25 m |
R32 Performances
| R32 Cooling Capacity Max : | 6.4 kW |
|---|---|
| R32 Cooling Capacity Min : | 1.8 kW |
| R32 Cooling Capacity Rated : | 5.2 kW |
| R32 Energy Label Cooling : | A++ |
| R32 Energy Label Heating : | A+ |
| R32 Heating Capacity Max : | 6.6 kW |
| R32 Heating Capacity Min : | 1.6 kW |
| R32 Heating Capacity Rated : | 6.5 kW |
| R32 Heating Capacity Rated -7°C : | 5.85 kW |
| R32 Pdesignc : | 6.2 kW |
| R32 Power Input Rated Cooling : | 1.77 kW |
| R32 Power Input Rated Heating : | 1.65 kW |
| R32 Qce - Annual Energy Consumption Cooling : | 319 kWh/an |
| R32 Qce - Annual Energy Consumption Heating : | 1645 kWh/an |
| R32 SCOP : | 4 |
| R32 SEER : | 6.8 |
Refrigerant
| Additional Charge : | 16 g/m |
|---|---|
| Additional Gas Amount : | 16 g/m |
| GWP : | 675 |
| Refrigerant : | R32 |
| Refrigerant Charge : | 1.30 kg |
| Refrigerant Pipe Size : | 1/4-1/2 in, 6-12 mm |
| Refrigerant precharged up to : | 5 m |
Sound Power/Pressure
| Sound Power Level : | 58 dB(A) |
|---|---|
| Sound Pressure Level : | 58 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15-43 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15-24 °C |
| Temperature Range Cooling : | 16-30 °C |
| Temperature Range Heating : | 16-30 °C |
