Description

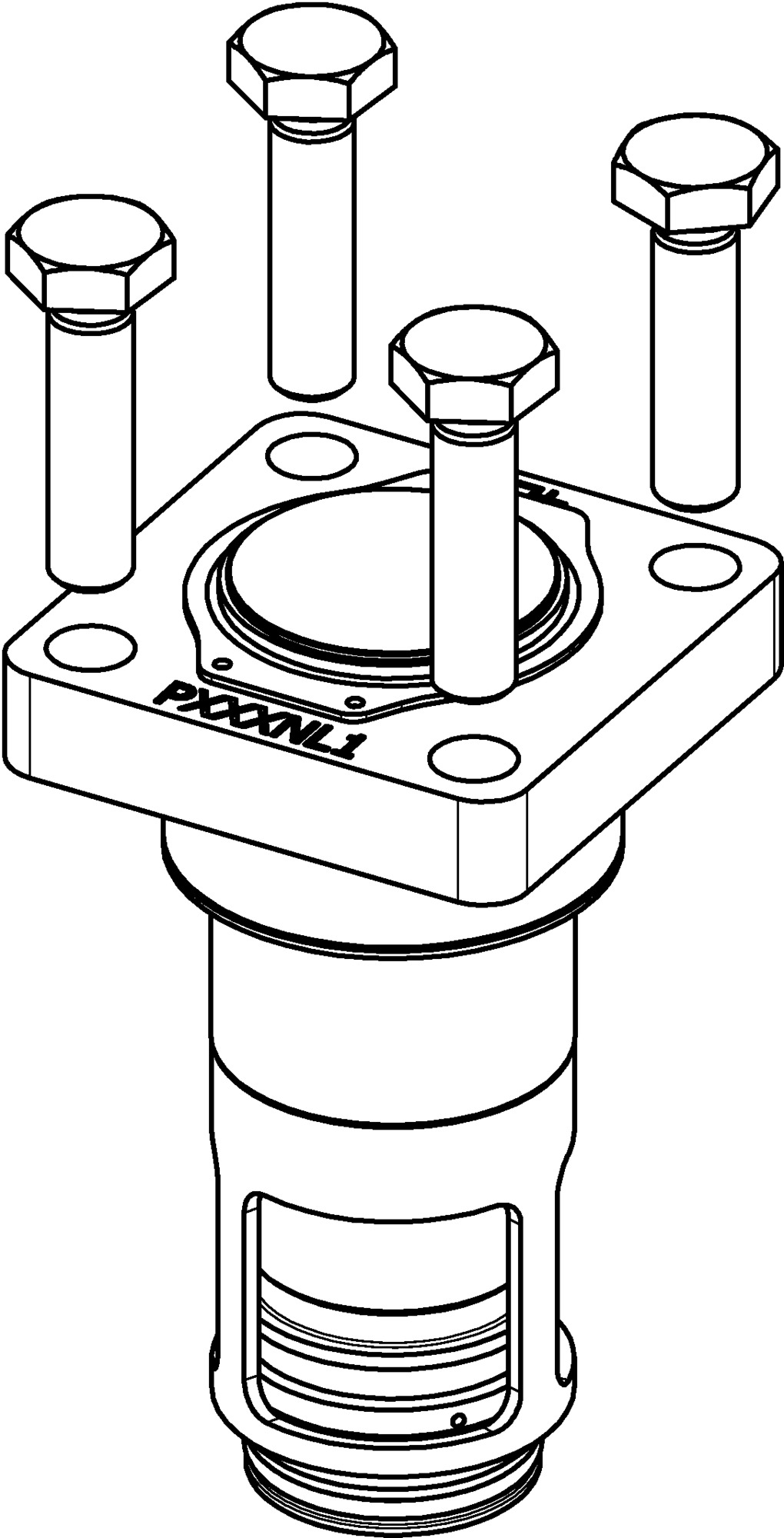

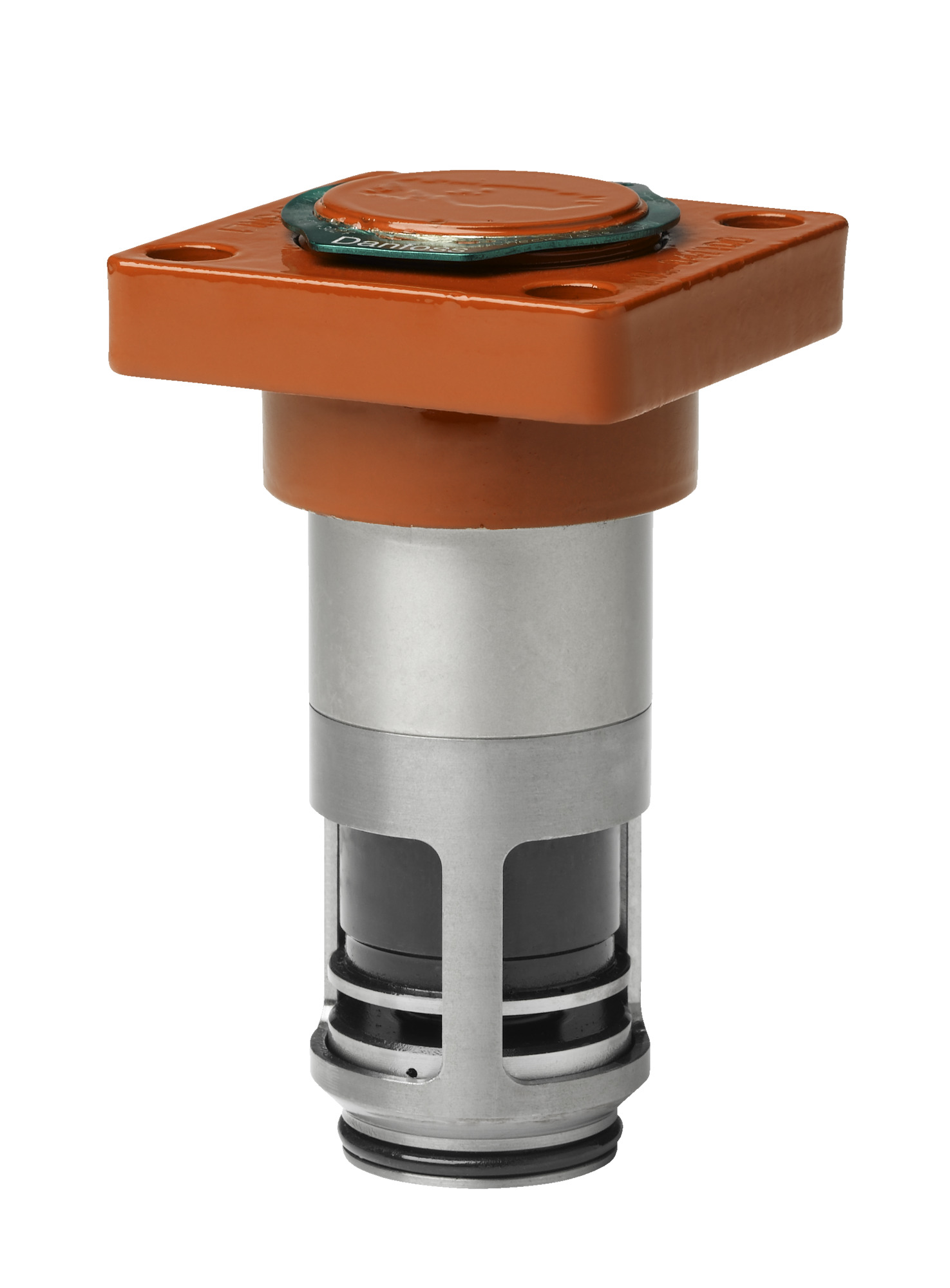

CHV-X 25-40 top complete
Contact us for more information
Function module, CHV-X 25-40, SVL Flexline
Danfoss
Product number:
RDB1921
| Product Group : | Danfoss Check Valve |
|---|
General Information
| Product Group : | Danfoss Check Valve |
|---|---|
| Type : | Top complete |
| Used For : | CHV-X 25, CHV-X 32, CHV-X 40 |
Additional Info
| Family : | CHV |
|---|
Logistical Information
| Commodity Code : | 84819000 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428486088 |
| Gross Weight : | 1.622 kg |
Measurements
| Net Weight : | 1.19 kg |
|---|---|
| Weight : | 1.19 kg |
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Temperature
| Max Temperature : | 150 °C |
|---|---|
| Min Temperature : | -60 °C |
| Temperature Range : | -60-150 °C |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 301.63 KB | |
| Technical Literature | 3.18 MB | |
| Technical Literature | 4.46 MB | |
| Brochures | 4.12 MB | |
| Technical Literature | 5.85 MB | |
| Brochures | 3.84 MB | |
| Installation Manual | 988.57 KB |
