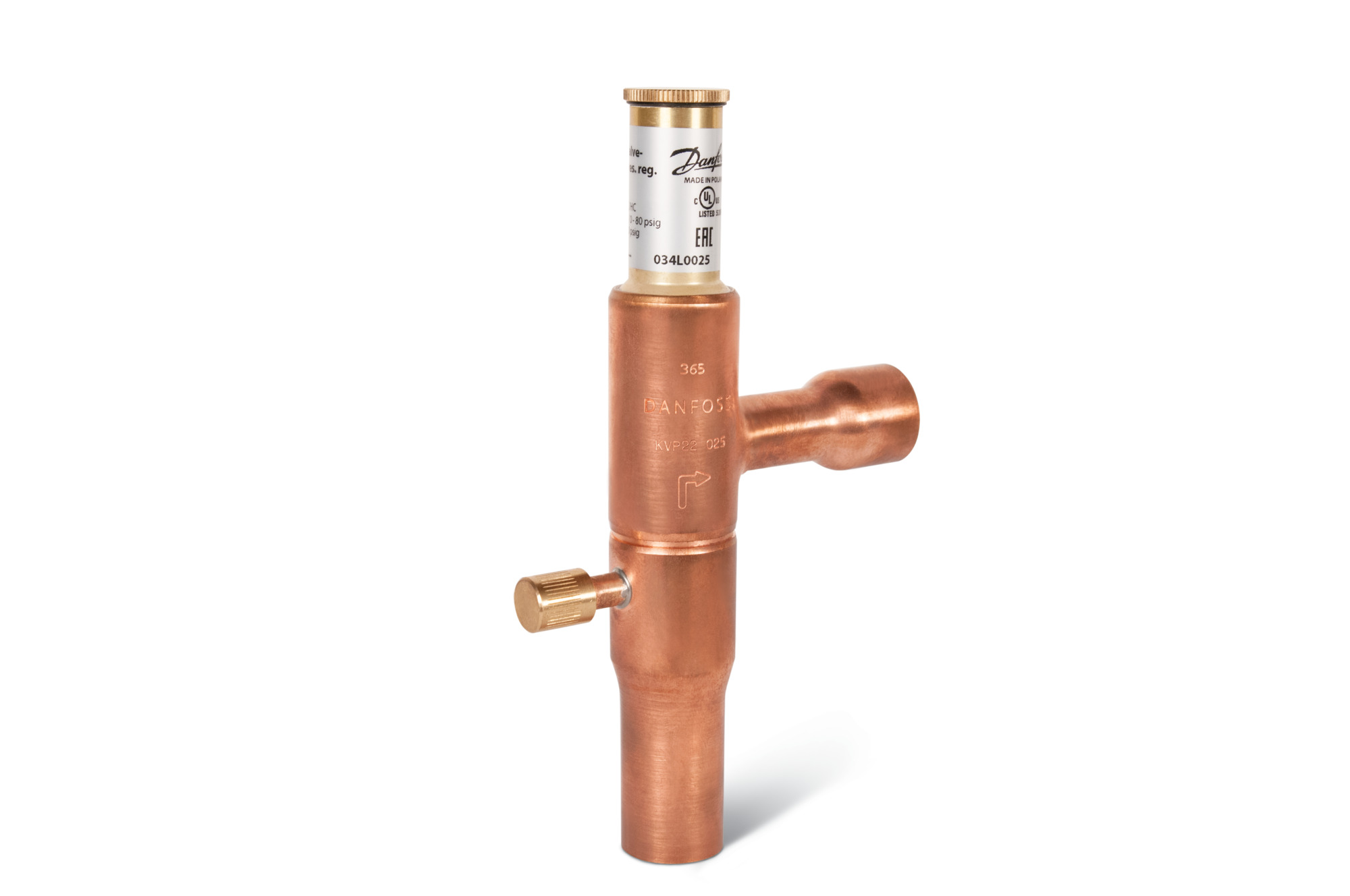

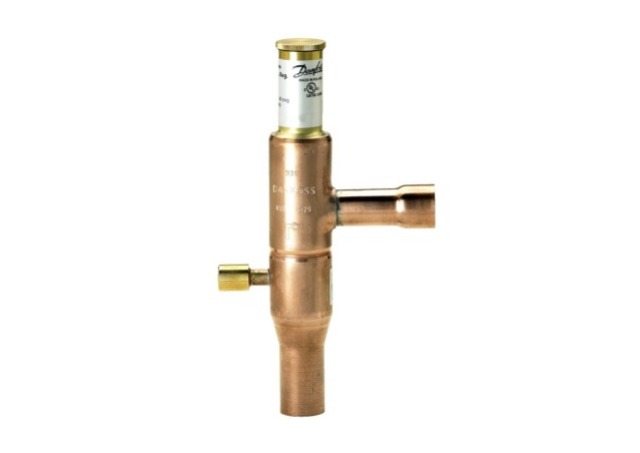

Evaporator Pressure Regulator KVP28
Contact us for more information
Evaporator Pressure Regulator KVP28
Product number:
RDB2415
| Product Group : | Evaporator Pressure Regulator |
|---|
General Information
| Product Group : | Evaporator Pressure Regulator |
|---|---|
| Equipment : | Schrader valve access port |
| Type : | Evaporator pressure regulator |
Additional Info
| Additional Info : | Max. extern.bellow press.25bar |
|---|---|
| Family : | KVP |
Connections
| Connection Size : | 1 1/8" |
|---|---|
| Connection Type : | Solder, ODF |
| Inlet Connection Size : | 1 1/8 in |
| Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 1 1/8 in |
| Outlet Type : | Solder, ODF |
Kv Values
| Kv Value : | 8.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428411837 |
| Gross Weight : | 0.984 kg |
Measurements
| Net Weight : | 0.87 kg |
|---|---|
| Weight : | 0.87 kg |
Pressure
| Max Operating Pressure : | 18.0 Bar |
|---|---|
| Regulating Range : | 0.0-5.5 Bar |
| Test Pressure : | 19.8 Bar |
R134A Performances
| R134a Capacity : | 6.10 kW |
|---|
R22 Performances
| R22 Capacity : | 8.60 kW |
|---|
R407C Performances
| R407C Capacity : | 7.90 kW |
|---|
Refrigerant
| Refrigerant : | R22, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China |
|---|
Temperature
| Factory Setting : | 2.00 Bar |
|---|---|
| Max Temperature : | 130 °C |
| Medium Temperature Range : | -45-130 °C |
| Min Temperature : | -45 °C |
Valves
| CV Value : | 9.250 gal/min |
|---|---|
| Flow Direction Indicator : | Engraved 1-way arrow |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 2.02 MB | |
| Conformity Declaration | 1.04 MB | |
| Technical Literature | 1.05 MB | |
| Installation Manual | 283.65 KB |
