Description

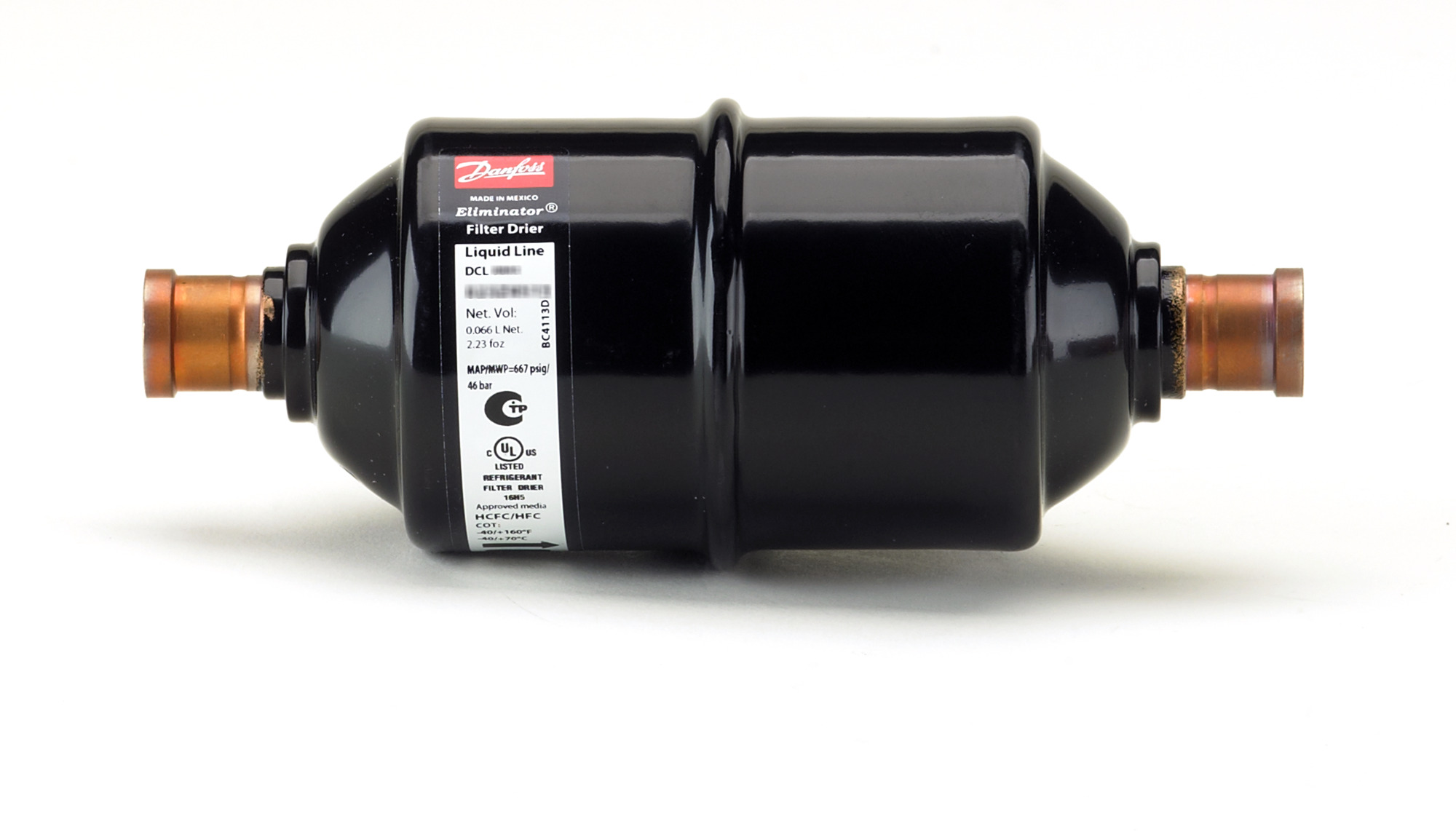

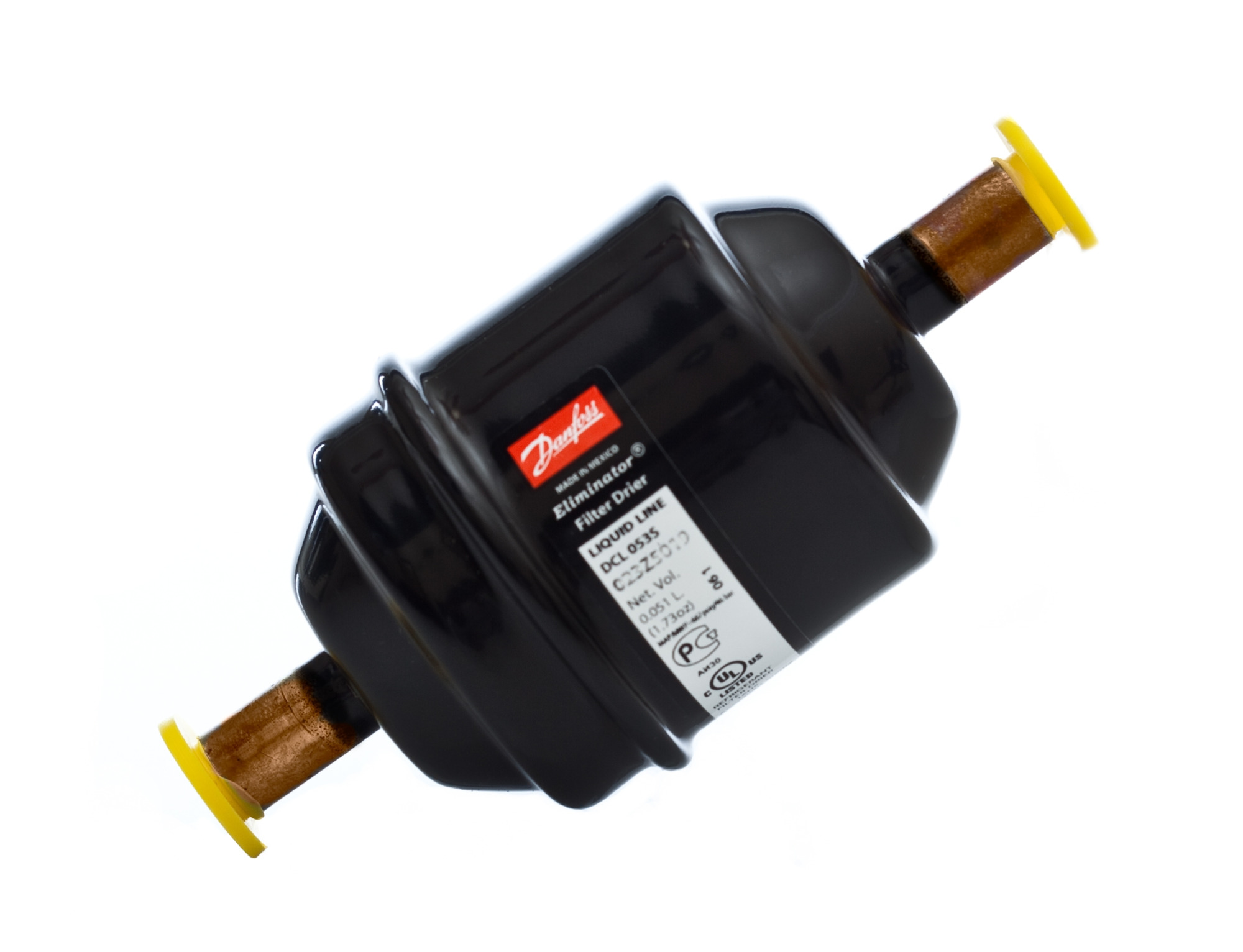

Drier 3/8" Solder DCL 053S Liquid Line
Contact us for more information
Drier 3/8" Solder DCL 053S Liquid Line
Product number:
RDG7402
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Activated Alumina / Molec. Sieve. : | 20/80 % |
| Model Number : | 023Z450991 |
| Specification Key : | DCL 053S |
| Type : | Liquid Line Drier |
Capacity
| Acid Capacity : | 0.85 g |
|---|---|
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Connection Size : | 3/8" |
|---|---|
| Connection Type : | Solder |
| Inlet Connection Size : | 3/8 in |
| Inlet Type : | SOLDER, ODF |
| Outlet Connection Size : | 3/8 in |
| Outlet Type : | SOLDER, ODF |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 05 cu.in. |
| Flow Capacity kW : | R32: 24.3, R134a: 16.0, R290: 19.2, R404A: 11.2, R407C: 16.3, R410A: 16.6, R507: 10.9 |
| Shell Volume : | 0.12 L |
| Solid Core Surface : | 12.72 in², 82 cm² |
| Solid Core Volume : | 2.25 in³, 37 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 102, R134a: 122, R290: 96, R404A: 127, R407C: 118, R410A: 110, R507: 133 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 94, R134a: 111, R290: 77, R404A: 120, R407C: 109, R410A: 98, R507: 119 |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | IND |
| EAN : | 5702428651363 |
| Gross Weight : | 0.301 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Copper-plated steel |
Measurements
| Net Weight : | 0.23 kg |
|---|---|
| Volume : | 0.085 L |
| Weight : | 0.23 kg |
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
