Description

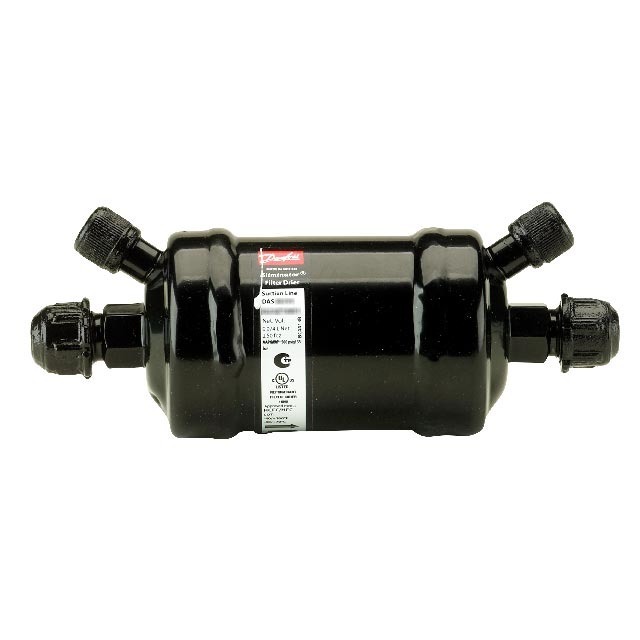

Drier 3/8" Flare DAS 083 VV Burnout
Contact us for more information
Drier 3/8" Flare DAS 083 VV Burnout
Product number:
RDG7516
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Activated Alumina / Molec. Sieve. : | 70/30 % |
| Model Number : | 023Z1001 |
| Specification Key : | DAS 083VV |
| Type : | Suction line filter drier |
Additional Info
| Additional Info : | Schraeder Inlet / Outlet |
|---|---|
| Family : | DAS |
Capacity
| Acid Capacity : | 3.79 g |
|---|---|
| Capacity : | R134a: 3.5 kW, R404A: 4.5 kW, R407C: 6.0 kW, R410A: 6.0 kW, R507: 4.5 kW |
Connections
| Connection Size : | 3/8 in, 10 mm |
|---|---|
| Connection Type : | Flare |
| Inlet Connection Size : | 3/8 in, 10.0 mm |
| Inlet Type : | Flare |
| Outlet Connection Size : | 3/8 in, 10.0 mm |
| Outlet Type : | Flare |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 08 cu.in. |
| Flow Capacity Conditions (ARI 730-05) : | Delta p=0.21bar, tevap=4°C |
| Flow Capacity kW : | R134a: 3.5, R404A: 4.5, R407C: 6.0, R410A: 6.0, R507: 4.5 |
| Shell Volume : | 0.17 L |
| Solid Core Surface : | 18.29 in², 118 cm² |
| Solid Core Volume : | 3.57 in³, 59 cm³ |
Logistical Information
| Commodity Code : | 84213985 |
|---|---|
| Country Of Origin : | MEX |
| EAN : | 5702428160537 |
| Gross Weight : | 0.616 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Net Weight : | 0.37 kg |
|---|---|
| Volume : | 0.114 L |
| Weight : | 0.37 kg |
Pressure
| Max Operating Pressure : | 35.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 245.66 KB | |
| Technical Literature | 582.52 KB | |
| Technical Literature | 1.44 MB | |
| Conformity Declaration | 548.69 KB | |
| Conformity Declaration | 1.83 MB | |
| Installation Manual | 269.51 KB |
