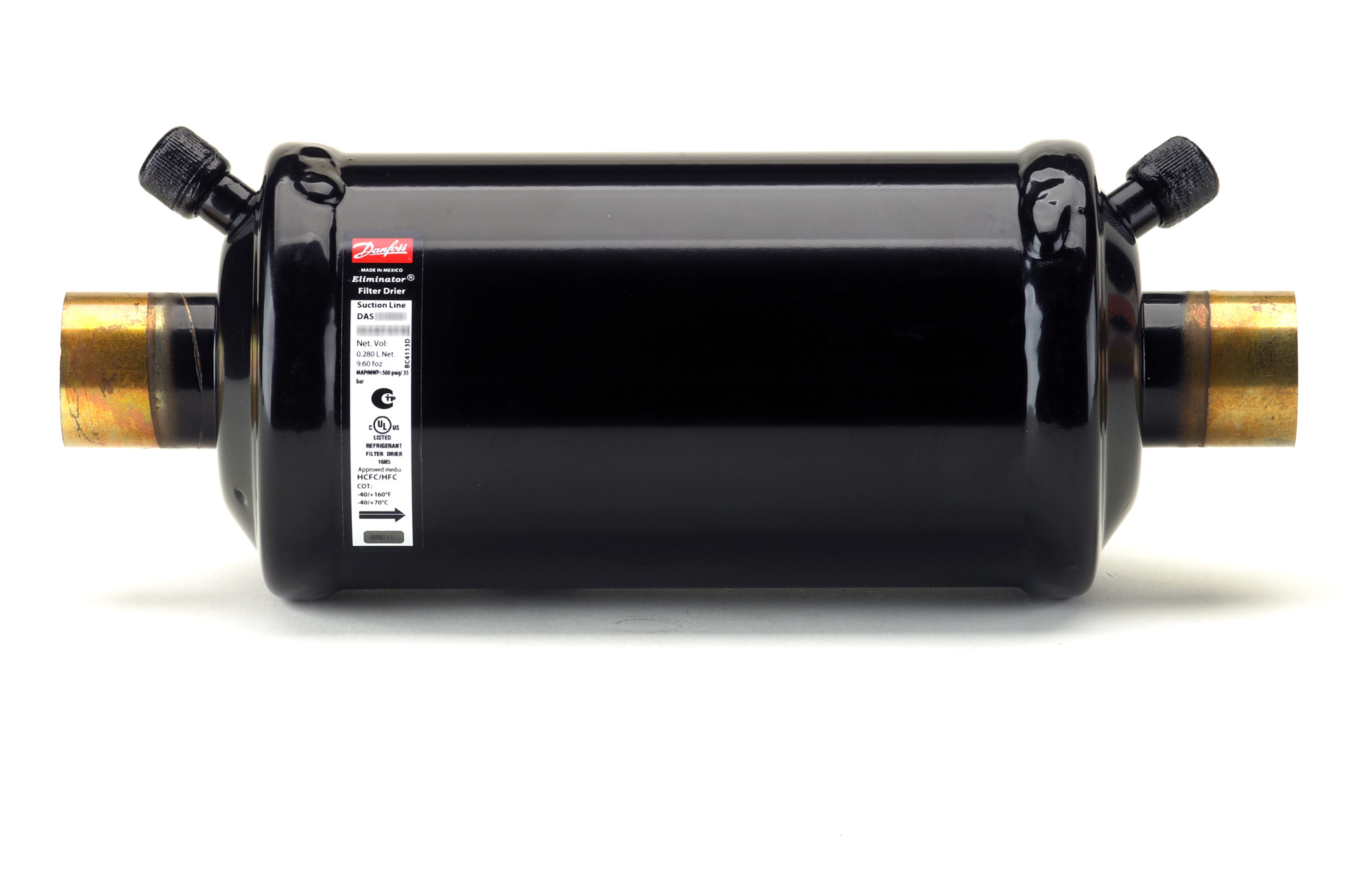

Drier 1 1/8" Flare DAS 419S VV Burnout
Contact us for more information
Drier 1 1/8" Flare DAS 419S VV Burnout
Product number:
RDG7525
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Activated Alumina / Molec. Sieve. : | 70/30 % |
| Type : | Suction line filter drier |
Additional Info
| Family : | DAS |
|---|
Capacity
| Acid Capacity : | 22.56 g |
|---|---|
| Capacity : | R134a: 22.0 kW, R404A: 30.0 kW, R407C: 35.0 kW, R410A: 35.0 kW, R507: 30.0 kW |
Connections
| Connection Size : | 1 1/8" |
|---|---|
| Connection Type : | Solder, ODF |
| Inlet Type : | Solder, ODF |
| Outlet Type : | Solder, ODF |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 41 cu.in. |
| Flow Capacity Conditions (ARI 730-05) : | Delta p=0.21bar, tevap=4°C |
| Flow Capacity kW : | R134a: 22.0, R404A: 30.0, R407C: 35.0, R410A: 35.0, R507: 30.0 |
| Shell Volume : | 0.97 L |
| Solid Core Surface : | 64.26 in², 415 cm² |
| Solid Core Volume : | 21.69 in³, 355 cm³ |
Logistical Information
| Commodity Code : | 84213985 |
|---|---|
| Country Of Origin : | MEX |
| EAN : | 5702428160353 |
| Gross Weight : | 2.064 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Copper |
Measurements
| Net Weight : | 2.02 kg |
|---|---|
| Volume : | 0.620 L |
| Weight : | 2.02 kg |
Oil
| Oil Type : | Oilfree applications |
|---|
Pressure
| Max Operating Pressure : | 35.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R125, R134a, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R452A, R455A, R507A, R513A |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
