Compressor Scroll SH240A4ABE POE Oil Stub Tube R410A
Contact us for more information

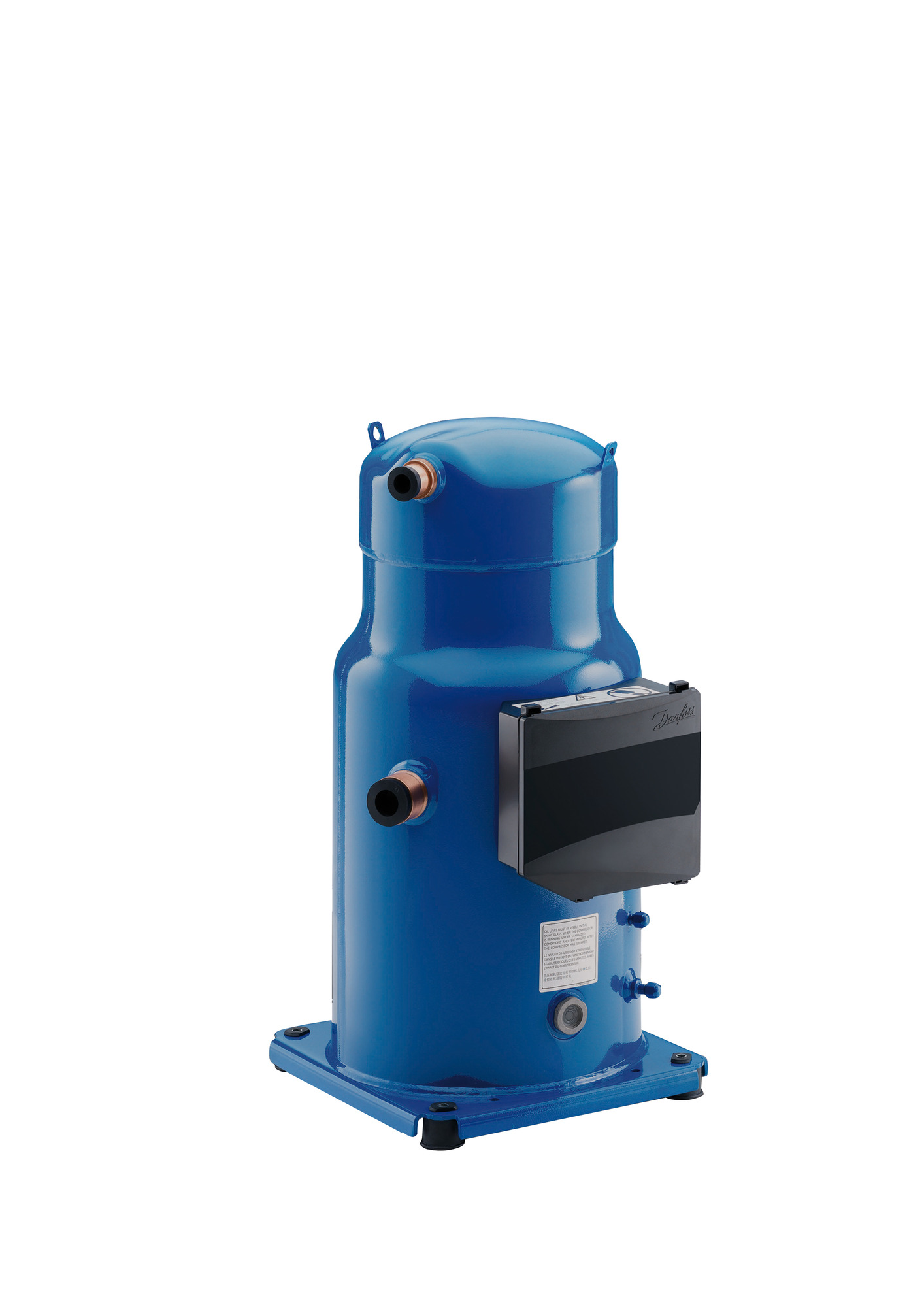

Compressor Scroll SH240A4ABE POE Oil Stub Tube R410A
Danfoss
Product number:
RDM5515
| Product Group : | Danfoss Scroll for Air Conditioning R410A |
|---|
General Information
| Product Group : | Danfoss Scroll for Air Conditioning R410A |
|---|---|
| Colour : | Blue |
| Model Number : | SH240A4ABE |
| Stroke Volume : | 227.6 cm³ |
| Type : | SH240A4ABE |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 227.60 cm³ |
| Technique : | Scroll |

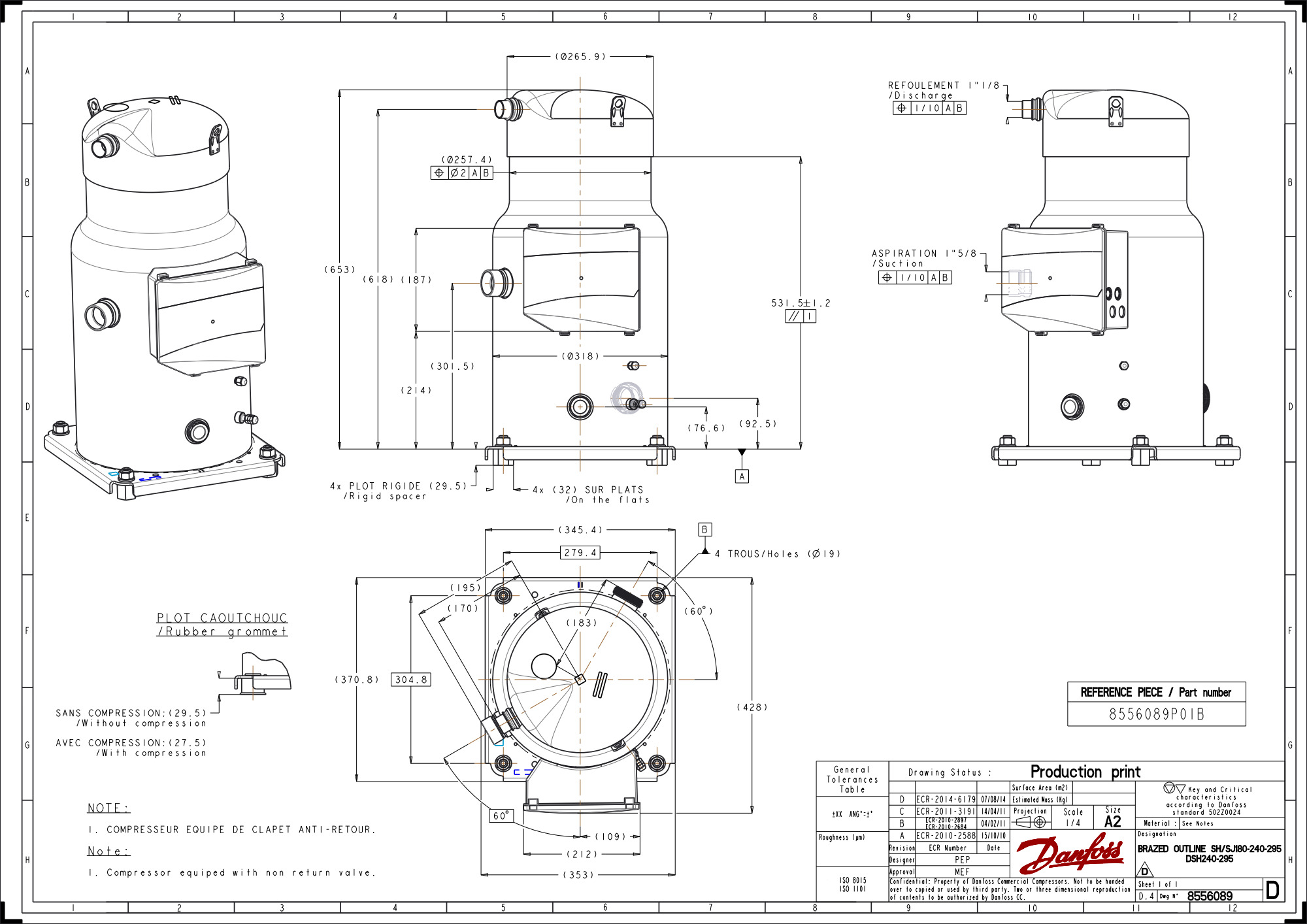

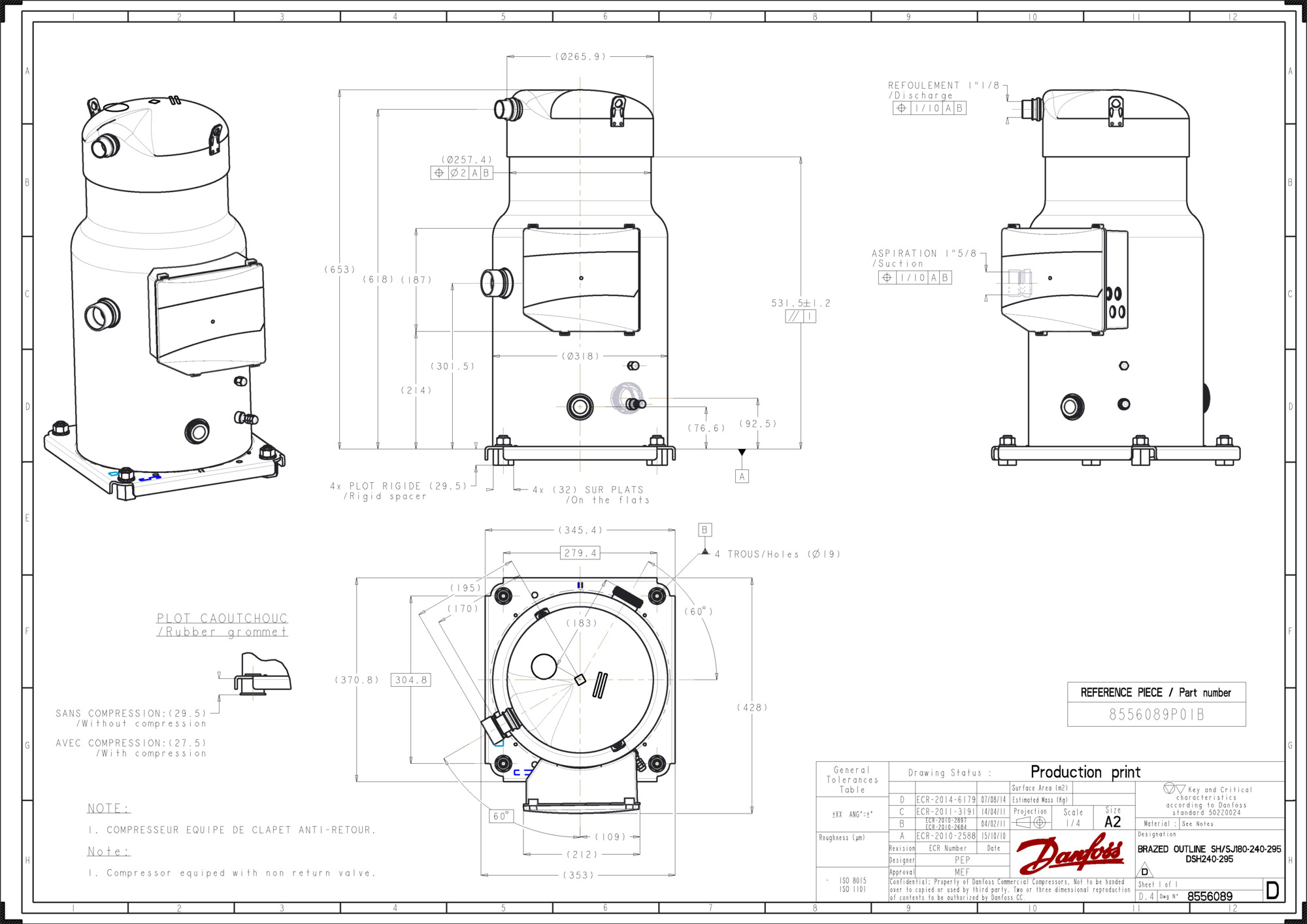

Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 648 mm |
| Discharge Connection Pipe Size : | 1 1/8 in |
| Discharge Connection Size : | 1 1/8 in |
| Discharge Line Connection : | 1 1/8 in |
| Suction Connection Height : | 331 mm |
| Suction Connection Pipe Size : | 1 5/8 in |
| Suction Connection Size : | 1 5/8 in |
| Suction Line Connection : | 1 5/8 in |
Cooling Capacity
| Cooling Capacity : | 250.51 kBtu/h |
|---|---|
| Cooling Capacity at 50Hz : | 53.8 kW |
| Cooling Capacity at 60Hz : | 73.4 kW |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP54 |
| LRA : | 215 A |
| MCC : | 51 A |
| Phase : | 3 |
| Power Supply : | 400/3/50 V/Ph/Hz |
| RLA : | 36.4 A |
| Voltage : | 400/460 V |
Heating Capacity
| Heating Capacity 50Hz : | 53.4 kW |
|---|
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | FRA |
| EAN : | 5702428980807 |
| Gross Weight : | 112.35 kg |

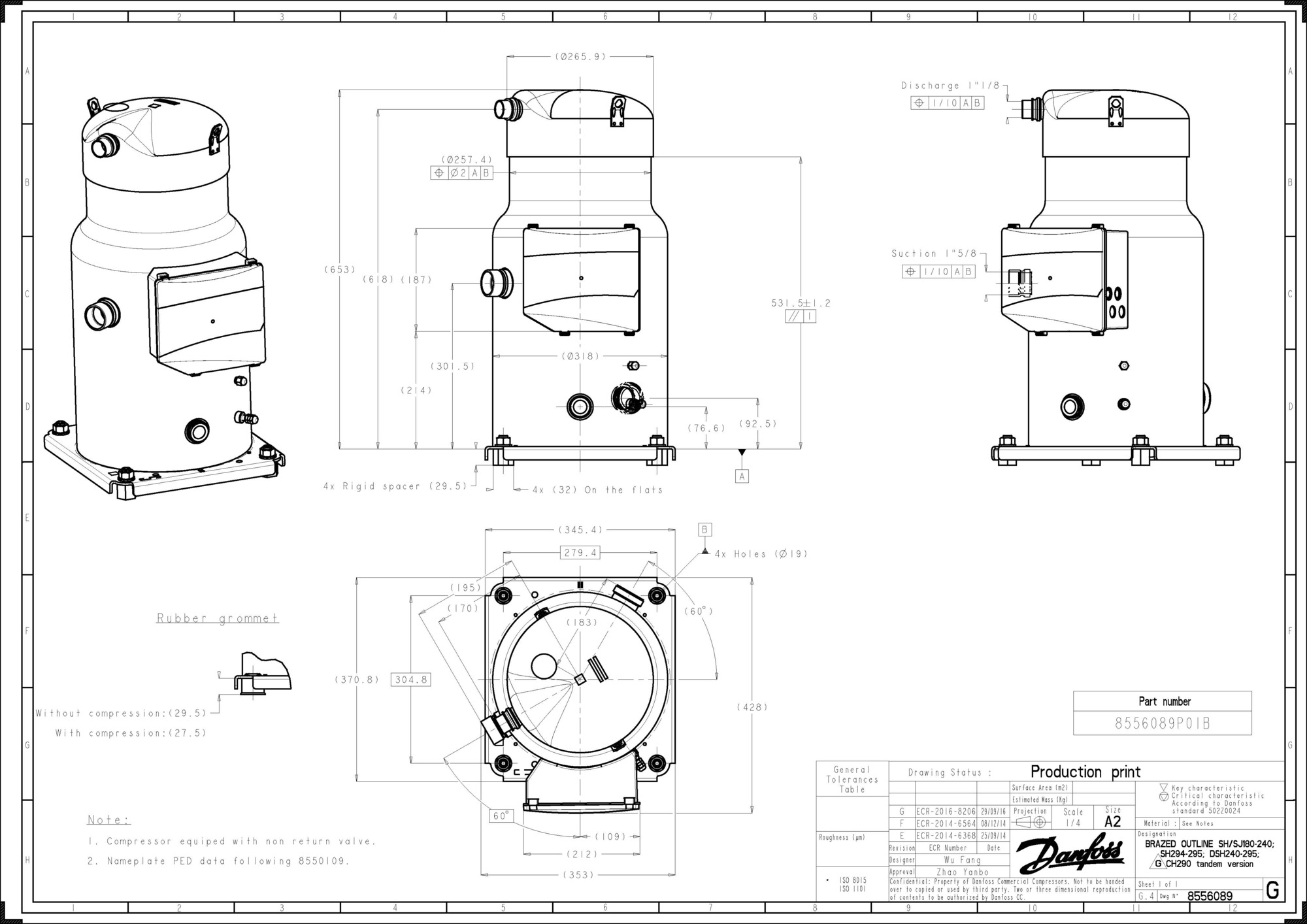

Measurements
| Diameter : | 318 mm |
|---|---|
| Height : | 683 mm |
| Net Weight : | 107 kg |
| Weight : | 107.00 kg |
Oil
| Oil Charge : | 6.7 L |
|---|
Pipes
| Pipe Diameter : | 1 1/8 in |
|---|
Pressure
| Higher Active Pressure : | 48.7 Bar |
|---|---|
| Lower Active Pressure : | 31.1 Bar |
Refrigerant
| Max Refrigerant Charge : | 13.5 kg |
|---|---|
| Refrigerant : | R410A |
| Refrigerant Charge : | 13.5 kg |
