Description
NRVA 25 Check Valve 1" Weld
Contact us for more information

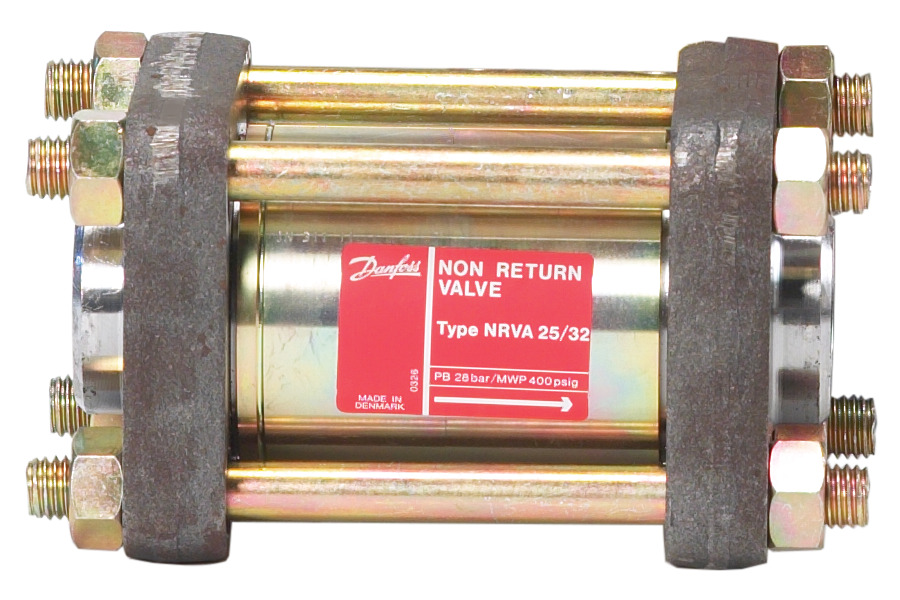

Check valve, NRVA 25
Product number:
RDB3578
| Product Group : | Danfoss Check Valve |
|---|
General Information
| Product Group : | Danfoss Check Valve |
|---|---|
| Model Number : | 020-2002 |
| Type : | NRVA 25 |
Additional Info
| Family : | NRVA |
|---|
Connections
| Connection Size : | 1 in, 25 mm |
|---|---|
| Connection Type : | Butt weld |
Kv Values
| Kv Value : | 19.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84813099 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702422048305 |
| Gross Weight : | 3.206 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Weight : | 3.20 kg |
|---|
Pressure
| Max Operating Pressure : | 40.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Temperature
| Temperature Range : | -50-140 °C |
|---|
Valves
| CV Value : | 22.040 gal/min |
|---|---|
| Fluid Group : | 1 |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 301.63 KB | |
| Installation Manual | 336.58 KB | |
| Brochures | 4.12 MB | |
| Technical Literature | 2.44 MB |
