Description
SCA-X 25 D Ang Stop/Check Valve PS52
Contact us for more information

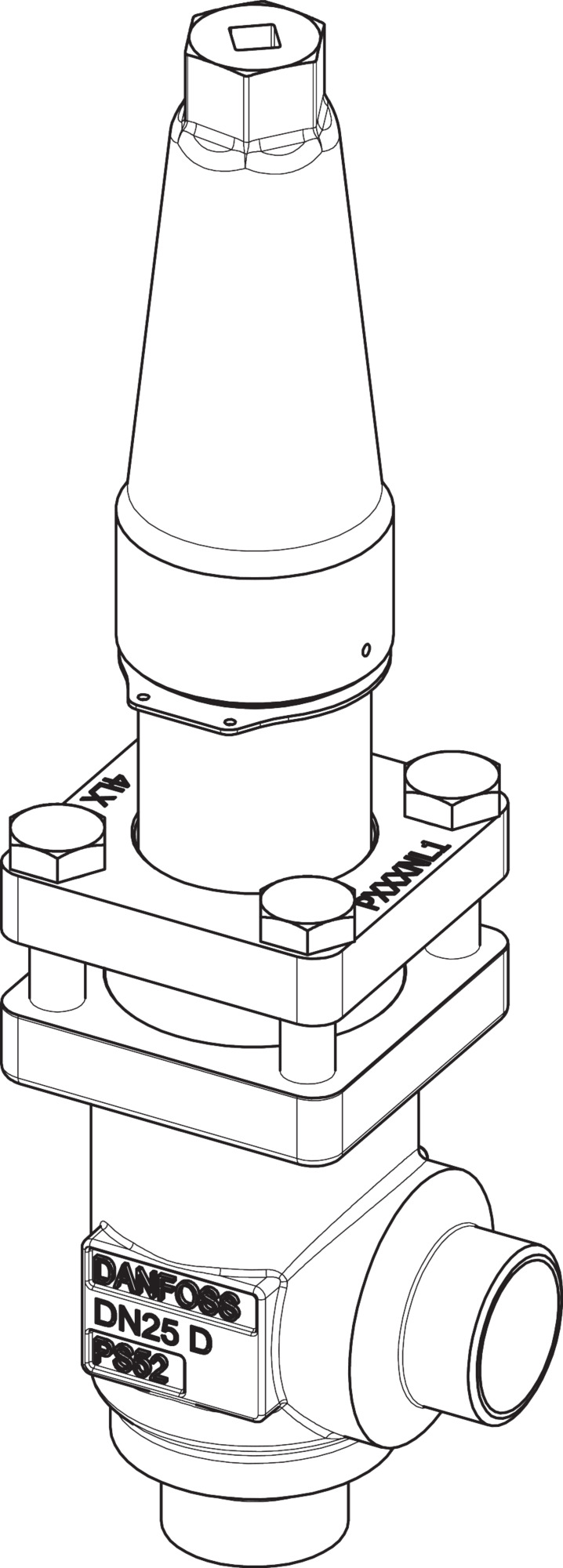

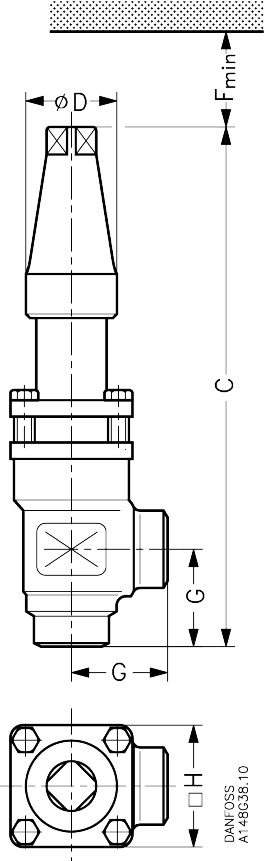

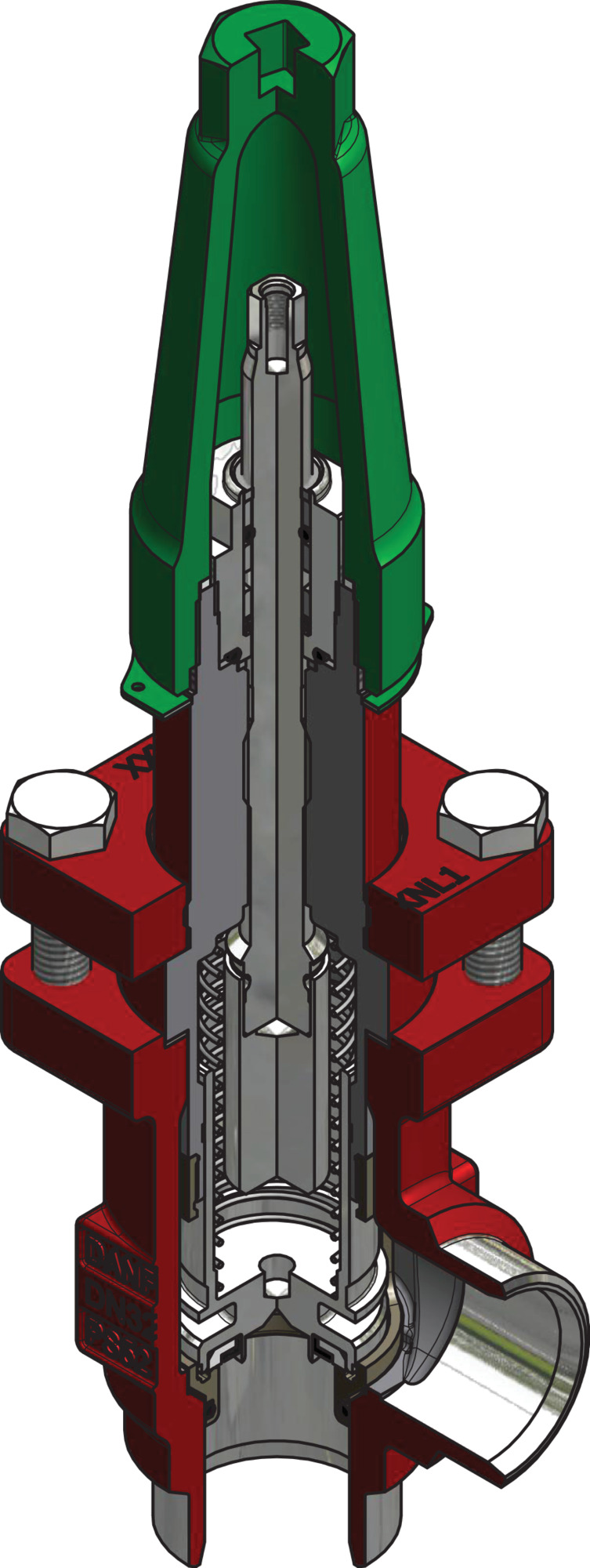

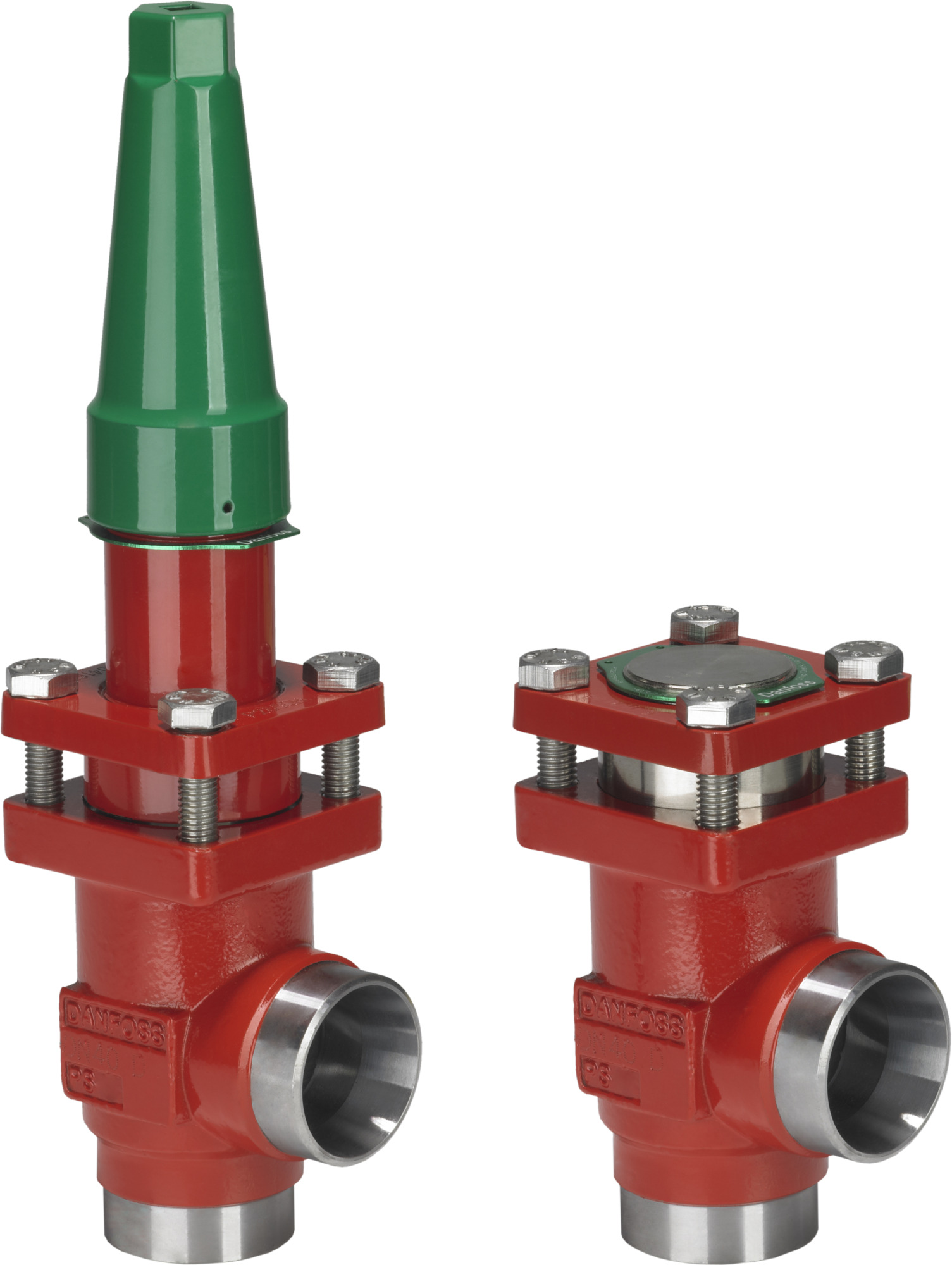

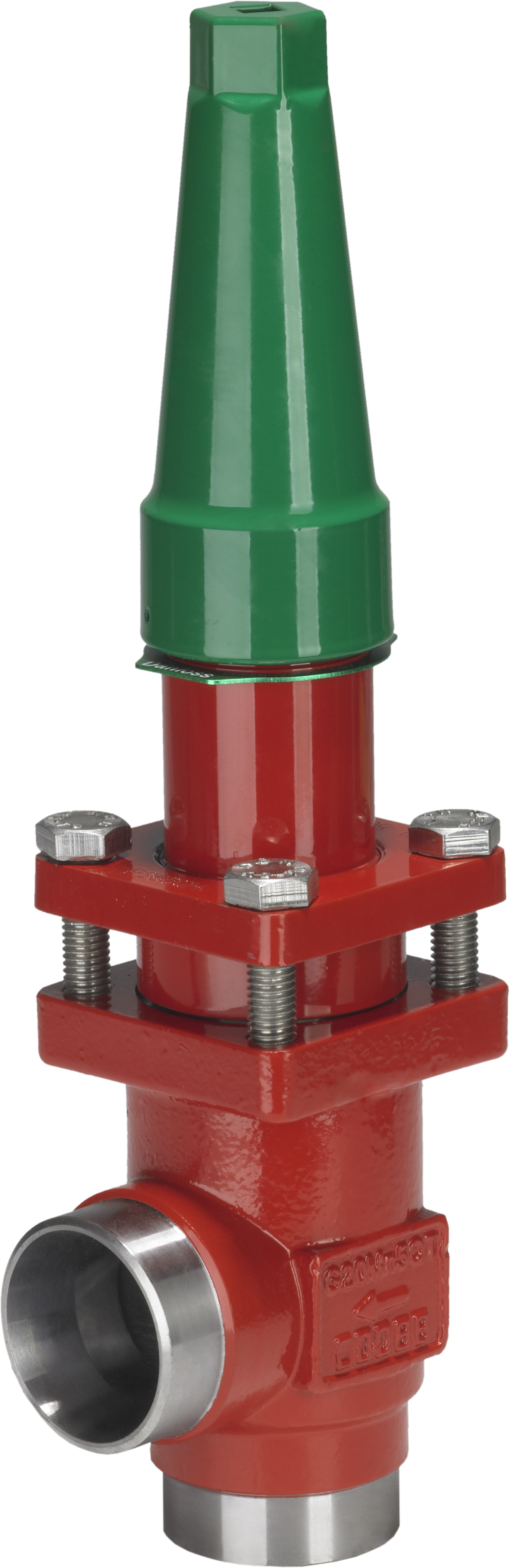

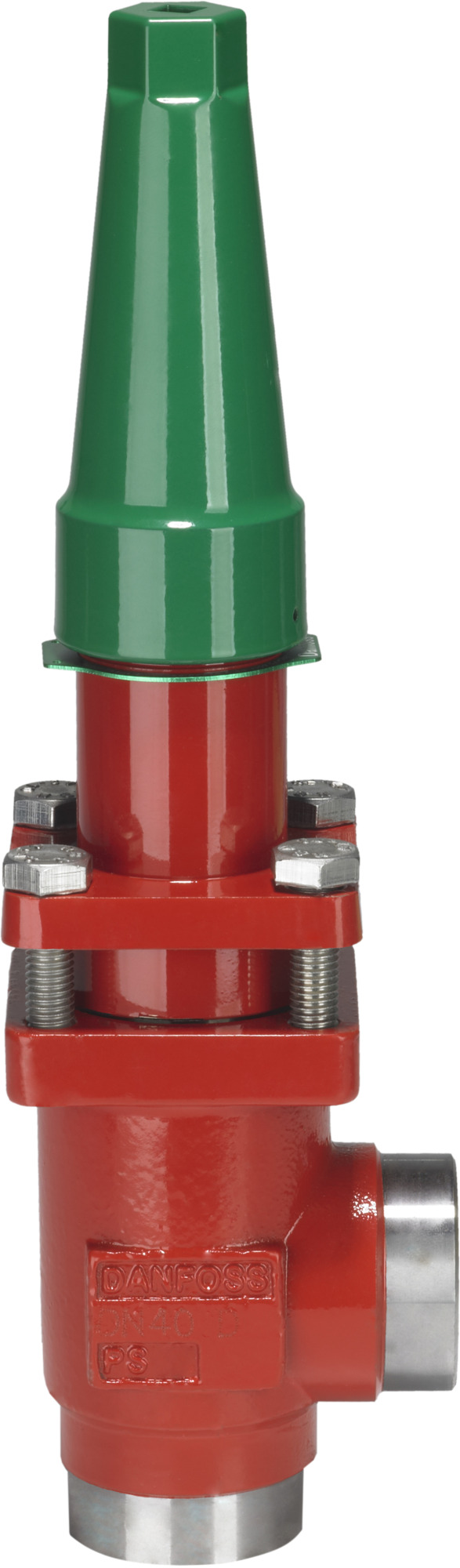

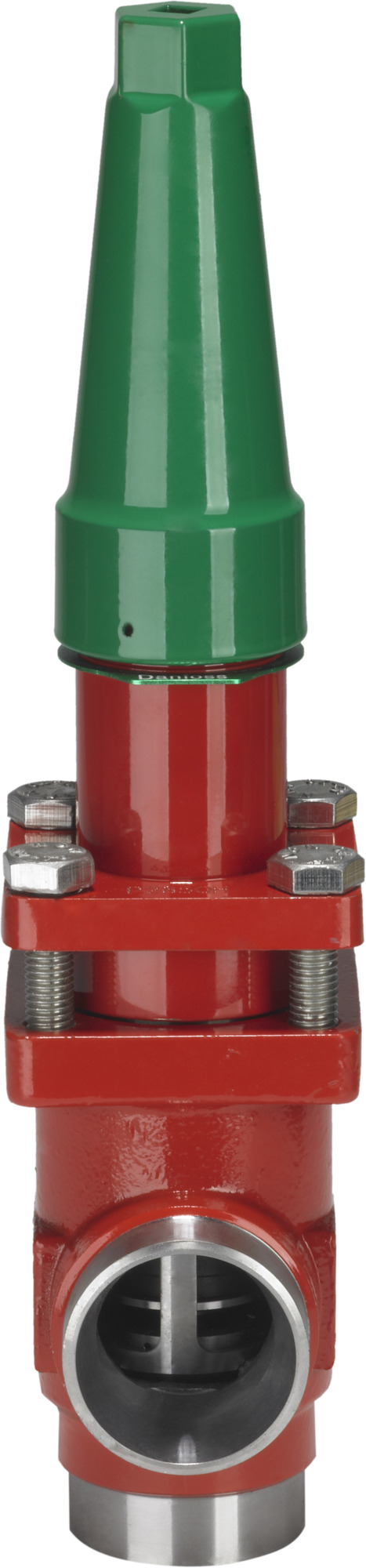

Check and stop valve, SCA-X 25
Product number:
RDB2437A
| Product Group : | Danfoss Check Valve |
|---|
General Information
| Product Group : | Danfoss Check Valve |
|---|---|
| Equipment : | Cap |
| Type : | SCA-X 25 |
Additional Info
| Family : | SCA |
|---|
Connections
| Inlet Connection Size : | 1 in, 25.0 mm |
|---|---|
| Inlet Type : | Butt weld |
| Outlet Connection Size : | 1 in, 25.0 mm |
| Outlet Type : | Butt weld |
Kv Values
| Kv Value : | 24.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818099 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428472692 |
| Gross Weight : | 4.284 kg |
Material
| Connection Material : | Steel |
|---|
Measurements
| Weight : | 3.45 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|---|
| Min OPD : | 0.040 Bar |
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, UKCA |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| CV Value : | 27.840 gal/min |
|---|---|
| Direction : | Angleway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1, 2 |
| Valve Version : | Standard version |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 301.63 KB | |
| Technical Literature | 3.18 MB | |
| Brochures | 4.12 MB | |
| Brochures | 774.42 KB | |
| Brochures | 1.11 MB | |
| Brochures | 3.84 MB | |
| Technical Literature | 3.59 MB | |
| Brochures | 471.77 KB | |
| Installation Manual | 988.57 KB |
Spare Part
