ASF-36BI 36000 BTU Under Ceiling R32 Indoor
Contact us for more information
ASF-36BI 36000 BTU Under Ceiling R32 Indoor
Product number:
ASF36BI
| Product Group : | Sinclair Under Ceiling-Indoor |
|---|
General Information
| Product Group : | Sinclair Under Ceiling-Indoor |
|---|---|
| Colour : | White |
| Model Number : | 053041000001060 |
| Remote Control : | YAP1F6 |
| Type : | Under Ceiling |
Additional Info
| Single Split / Multi Split : | uni split |
|---|
Air Volume/Air Flow
| Air Flow : | 1600 m³/h |
|---|
Cable
| Communication Cable : | 2 x 0.75 |
|---|---|
| Recommended Power Cable : | 3 x 1.5 |
Connections
| Pipe Diameter Gas Side : | 15.9 mm |
|---|---|
| Pipe Diameter Liquid Side : | 9.5 mm |
Cooling Capacity
| Cooling Capacity : | 10 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 1.18/10.5 kW |
| Cooling Capacity (Min/Rated/Max) : | 1.18/10.0/10.5 kW |
Electrical
| Annual Power Consumption : | 573/3149 kWh |
|---|---|
| Current (Cooling) : | 10.0 A |
| Current (Heating) : | 12.0 A |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Recommended Fuse : | 6 |
Energy Efficiency/Performance
| Energy Label (Cooling) : | A++ |
|---|---|
| Energy Label (Heating) : | -/A+/- |
| SCOP : | 4 |
| SEER : | 6.1 |
Heating Capacity
| Heating Capacity : | 12 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 2.5/12.0/12.4 kW |
| Heating Capacity Min/Max : | 2.5/12.4 kW |
| P Design Heating Capacity (Average) : | 7.2 kW |
Indoor Unit Attributes
| Depth (IU) : | 235 mm |
|---|---|
| Height (IU) : | 665 mm |
| Width (IU) : | 1200 mm |
Logistical Information
| Gross Weight : | 38 kg |
|---|
Measurements
| Depth : | 235 mm |
|---|---|
| Height : | 665 mm |
| Net Weight : | 32 kg |
| Width : | 1200 mm |
Refrigerant
| Additional Charge : | 40 g/m |
|---|---|
| GWP : | 675 |
| Refrigerant : | R32 |
| Refrigerant Charge : | 0 kg |
Sound Power/Pressure
| Sound Power Level : | 70 dB(A) |
|---|---|
| Sound Pressure Level : | 55 dB(A) |
| Sound Pressure Level (Low/Medium/High/Quiet) : | 49/47/45/43 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | –20~48 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | –20~24 °C |
| Temperature Range Cooling : | 16-30 °C |
| Temperature Range Heating : | 16-30 °C |
| File name | Extension | Size |
|---|---|---|
| Owners Manual | 3 MB | |
| Data Book | 4.5 MB | |
| Brochures | 21.49 MB | |
| Conformity Declaration | 369.72 KB | |

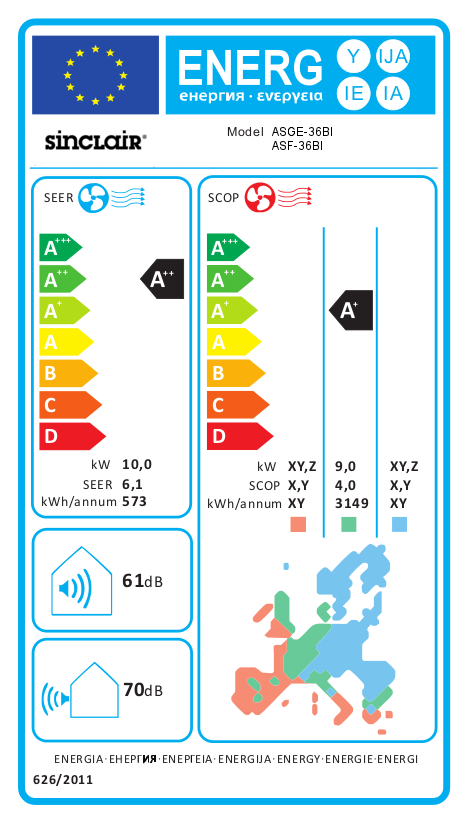

| Energy Label | png | 74.95 KB |
| Installation Manual | 12.98 MB |
