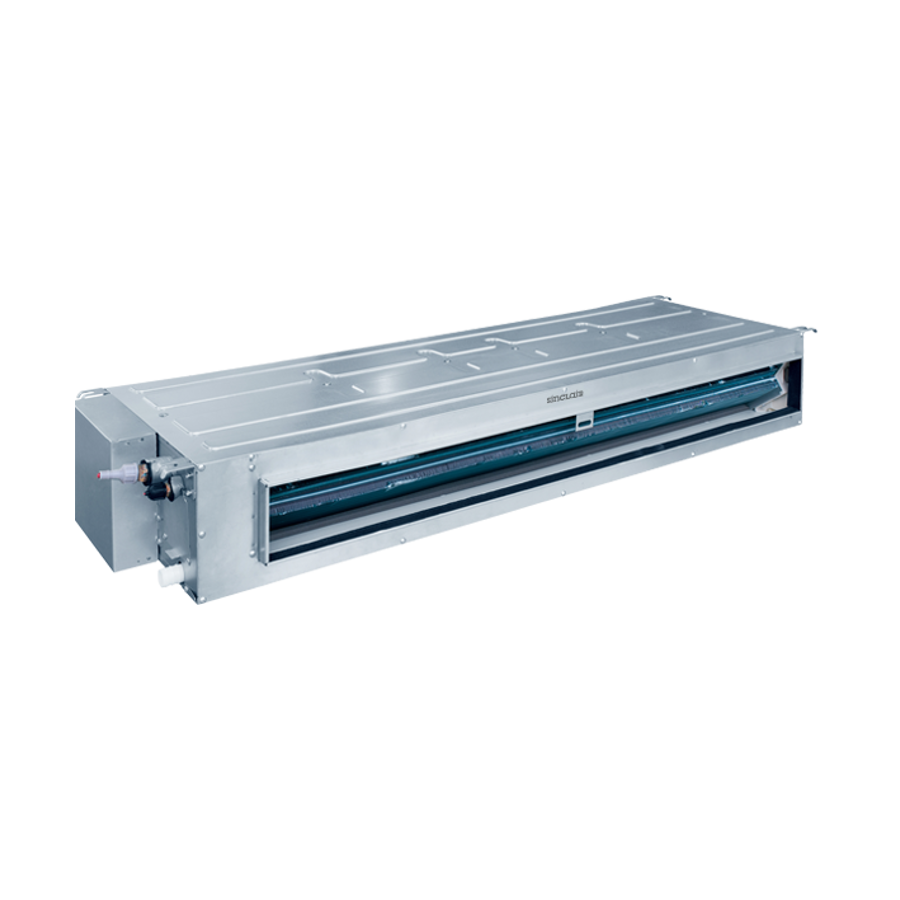

ASD-36BI 36000 BTU Ducted R32 Indoor
Contact us for more information
ASD-36BI 36000 BTU Ducted R32 Indoor
Product number:
ASD36BI
| Product Group : | Sinclair Ducted - Indoor |
|---|
General Information
| Product Group : | Sinclair Ducted - Indoor |
|---|---|
| Colour : | Silver |
| Model Number : | 053061000001060 |
| Remote Control : | YAP1F6 |
| Type : | Ducted System |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | uni split |
Air Volume/Air Flow
| Air Flow : | 1800 m³/h |
|---|
Cable
| Communication Cable : | 2 x 0.75 |
|---|---|
| Recommended Power Cable : | 3 x 1.5 |
Connections
| Pipe Diameter Gas Side : | 15.9 mm |
|---|---|
| Pipe Diameter Liquid Side : | 9.5 mm |
Cooling Capacity
| Cooling Capacity : | 10 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 1.16/10.6 kW |
| Cooling Capacity (Min/Rated/Max) : | 1.16/10.0/10.6 kW |
Electrical
| Annual Power Consumption : | 571/3147 kWh |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Recommended Fuse : | 6 |
| Voltage : | 220-240 V |
Energy Efficiency/Performance
| Energy Label (Cooling) : | A++ |
|---|---|
| Energy Label (Heating) : | -/A+/- |
| SCOP : | 4 |
| SEER : | 6.1 |
Heating Capacity
| Heating Capacity : | 12 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 2.50/12.0/12.42 kW |
| Heating Capacity Min/Max : | 2.5/12.42 kW |
| P Design Heating Capacity (Average) : | 9 kW |
Indoor Unit Attributes
| Depth (IU) : | 700 mm |
|---|---|
| Height (IU) : | 300 mm |
| Width (IU) : | 1000 mm |
Logistical Information
| Gross Weight : | 47 kg |
|---|
Measurements
| Depth : | 700 mm |
|---|---|
| Height : | 300 mm |
| Net Weight : | 41.0 kg |
| Width : | 1000 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 65 m |
| Min Piping Length : | 3 m |
| Standard Piping Length : | 5 m |
Pressure
| External Static Pressure Non/Min-Max) : | 37 (0-100) |
|---|
Refrigerant
| GWP : | 675 |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 0 kg |
| Refrigerant Pipe Size : | 3/8 in, 5/8 in |
Sound Power/Pressure
| Sound Power Level : | 65 dB(A) |
|---|---|
| Sound Pressure Level (Low/Medium/High/Quiet) : | 46/44/42/40 dB(A) |
Temperature
| Temperature Range Cooling : | 16-30 °C |
|---|---|
| Temperature Range Heating : | 16-30 °C |
