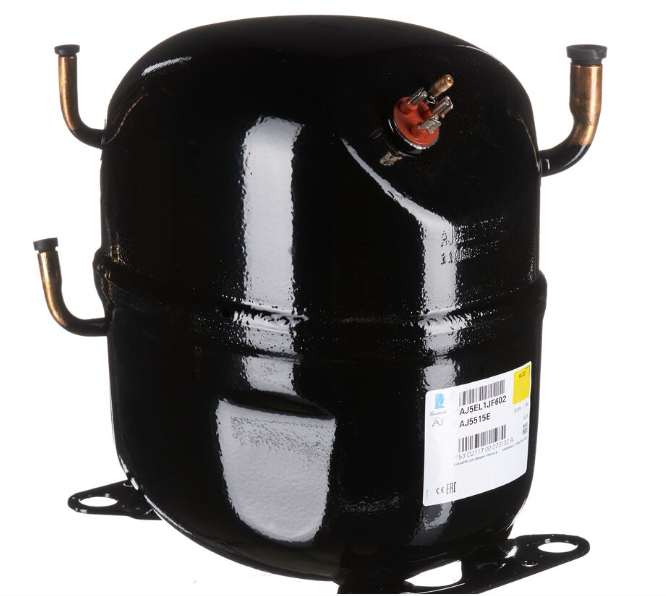

AJ5515E Airconditioning Compressor on R22 12000BTU
Contact us for more information
AJ5515E Airconditioning Compressor on R22 12000BTU
Product number:
RLH3362
| Product Group : | Tecumseh Air Conditioning 220V |
|---|
General Information
| Product Group : | Tecumseh Air Conditioning 220V |
|---|---|
| Application : | HBP/AC - Air Conditioning |
| Model Number : | AJ5EL1JF602A03 |
| Type : | Reciprocating Compressors |
Compressor
| Displacement : | 25.95 cc |
|---|
Connections
| Discharge Line Connection : | 5/16 in |
|---|---|
| Suction Line Connection : | 1/2 in |
Electrical
| LRA : | 36 A |
|---|---|
| MCC : | 0 A |
| Phase : | 1 |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 220-240 V |
Measurements
| Height : | 268 mm |
|---|---|
| Length : | 246 mm |
| Weight : | 19 kg |
| Width : | 178 mm |
Motor
| Motor Type : | PSC |
|---|
Oil
| Oil Charge : | 475 cc |
|---|---|
| Oil Type : | Mineral |
Performance
| Horsepower : | 1 HP |
|---|
Pressure
| Diff : | -15 °C, 15 °C |
|---|
Refrigerant
| Refrigerant : | R22 |
|---|
