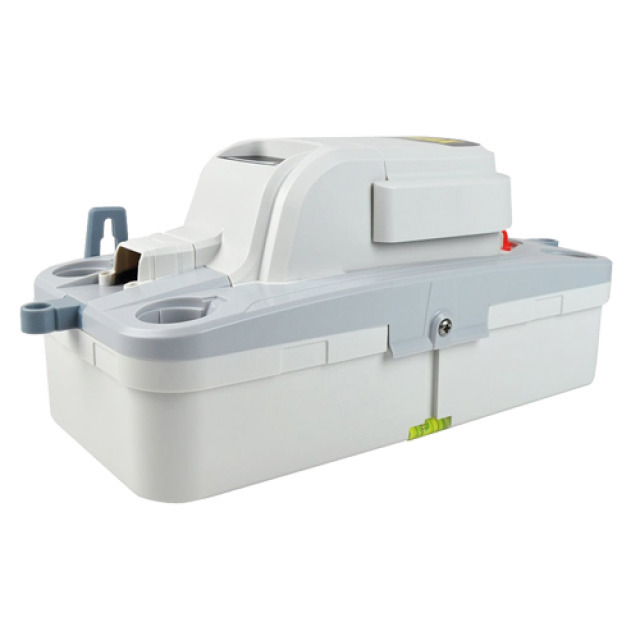

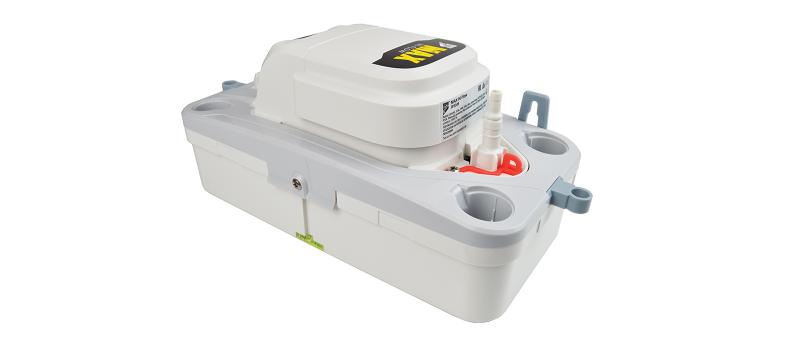

| Product Group : | Condensate Pumps Aspen |
|---|
| Product Group : | Condensate Pumps Aspen |
|---|---|
| Max Lift : | 5 m |
| Model Number : | FP3349 |
| Type : | Condensate water pump |
| Flow Rate at 0 m : | 550 L/h |
|---|---|
| Max Discharge Head : | 5 m |
| Max Flow Rate : | 550 L/h |
| Max Water Temperature : | 40 °C |
| Tank Volume : | 1.7 L |
| Inlet Connection Size : | x4 21-27 mm |
|---|---|
| Outlet Connection Size : | 6 & 10 mm |
| Current : | 0.8 A |
|---|---|
| IP Class : | IP24 |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Thermal Protection : | Yes |
|---|
| Commodity Code : | 84138100 |
|---|---|
| Country Of Origin : | DEU |
| Depth : | 285 mm |
|---|---|
| Height : | 134 mm |
| Width : | 144 mm |
| Water Flow Pressure : | 550 L/h |
|---|
| Pump Sound Level In App : | 44 dB(A) |
|---|---|
| Sound Pressure Level : | 44 dB(A) |
| Safety Switch : | 3 A NC |
|---|
| File name | Extension | Size |
|---|---|---|
| Data Book | 327.9 KB | |
| User Manual | 1.76 MB |
