Description

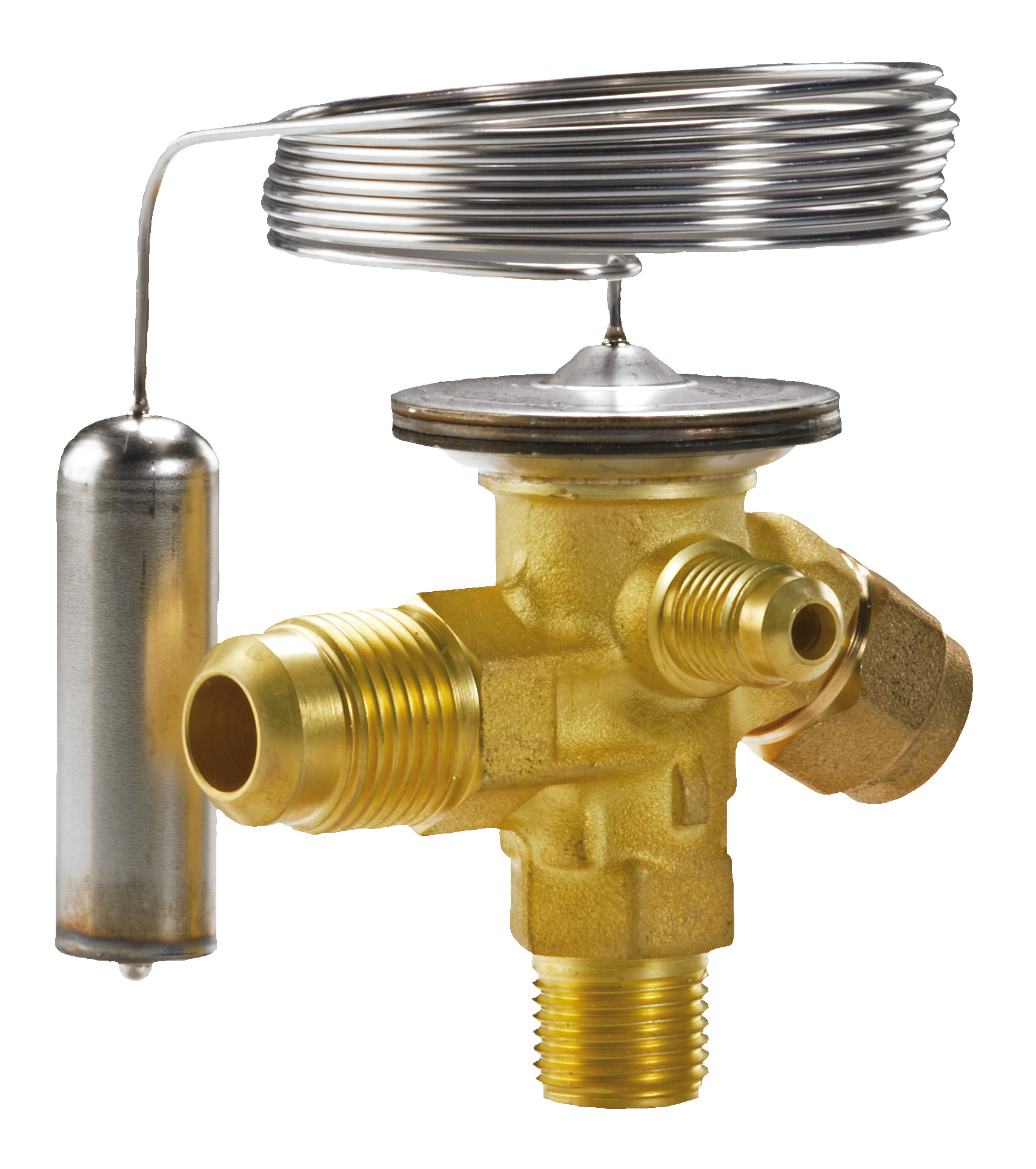

Exp Valve R507A/404A TES2 3/8" x 1/2" Flare Without Orifice M
Contact us for more information
068Z3407 Exp Valve R507A/404A TES2 3/8" x 1/2" Flare Without Orifice M
Product number:
RDA0425
| Product Group : | Danfoss Thermostatic Expansion Valves T2/TE2 |
|---|
General Information
| Product Group : | Danfoss Thermostatic Expansion Valves T2/TE2 |
|---|---|
| Model Number : | 068Z3407 |
| Type : | Expansion Valve |
Additional Info
| Family : | T2 |
|---|
Connections
| Equalization Connection Size : | 1/4 in |
|---|---|
| Equalization Connection Type : | FLARE |
| Inlet Connection Size : | 3/8 in |
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/2 in |
| Outlet Type : | Flare |
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702422125235 |
| Gross Weight : | 0.316 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Brass |
Measurements
| Capillary Tube Length : | 59.0 in, 1500 mm |
|---|---|
| Weight : | 0.29 kg |
Pressure
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Pressure Equalization : | External |
Refrigerant
| Refrigerant : | R404A, R507A |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|---|
| Seal Approval : | LLC CDC TYSK |
Temperature
| Max Temperature : | -15 °C |
|---|---|
| Min Temperature : | -40 °C |
| Superheat Setting : | Adjustable |
| Temperature Range : | -40--5 °C |
Valves
| Direction : | Angleway |
|---|---|
| Flow Direction : | Single-flow |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 2 |
| MOP : | 0 °C |
| MOPD : | 34 Bar |
