Description
068Z3206 Exp Valve R22/407C T2 3/8" x 1/2" Int Flare
Contact us for more information
068Z3206 Exp Valve R22/407C T2 3/8" x 1/2" Int Flare
Product number:
RDA1147
| Product Group : | Danfoss Thermostatic Expansion Valves T2/TE2 |
|---|
General Information
| Product Group : | Danfoss Thermostatic Expansion Valves T2/TE2 |
|---|---|
| Model Number : | 068Z3206 |
| Parts Included : | Bulb strap |
| Type : | T 2 |
Additional Info
| Family : | T2 |
|---|
Connections
| Inlet Connection Size : | 3/8 in |
|---|---|
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/2 in |
| Outlet Type : | Flare |
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702422114130 |
| Gross Weight : | 0.306 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Brass |
Measurements
| Capillary Tube Length : | 59.0 in, 1500 mm |
|---|---|
| Net Weight : | 0.28 kg |
| Weight : | 0.28 kg |
Pressure
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Pressure Equalization : | Internal |
Refrigerant
| Refrigerant : | R22, R407C |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Max Temperature : | 10 °C |
|---|---|
| Min Temperature : | -40 °C |
| Static Superheat : | 4 °C |
| Superheat Setting : | Adjustable |
| Temperature Range : | -40-10 °C |
Valves
| Direction : | Angleway |
|---|---|
| Flow Direction : | Single-flow |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 2 |
| File name | Extension | Size |
|---|---|---|
| Installation Manual | 549.72 KB | |
| Technical Literature | 1.64 MB | |
| Conformity Declaration | 266.93 KB | |
| Conformity Declaration | 454.44 KB | |
| Conformity Declaration | 54.95 KB |

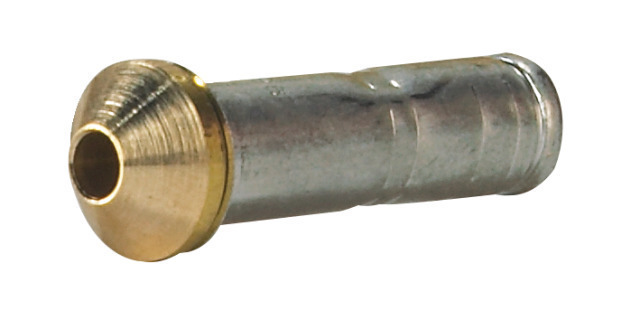

Spare Part
