Description

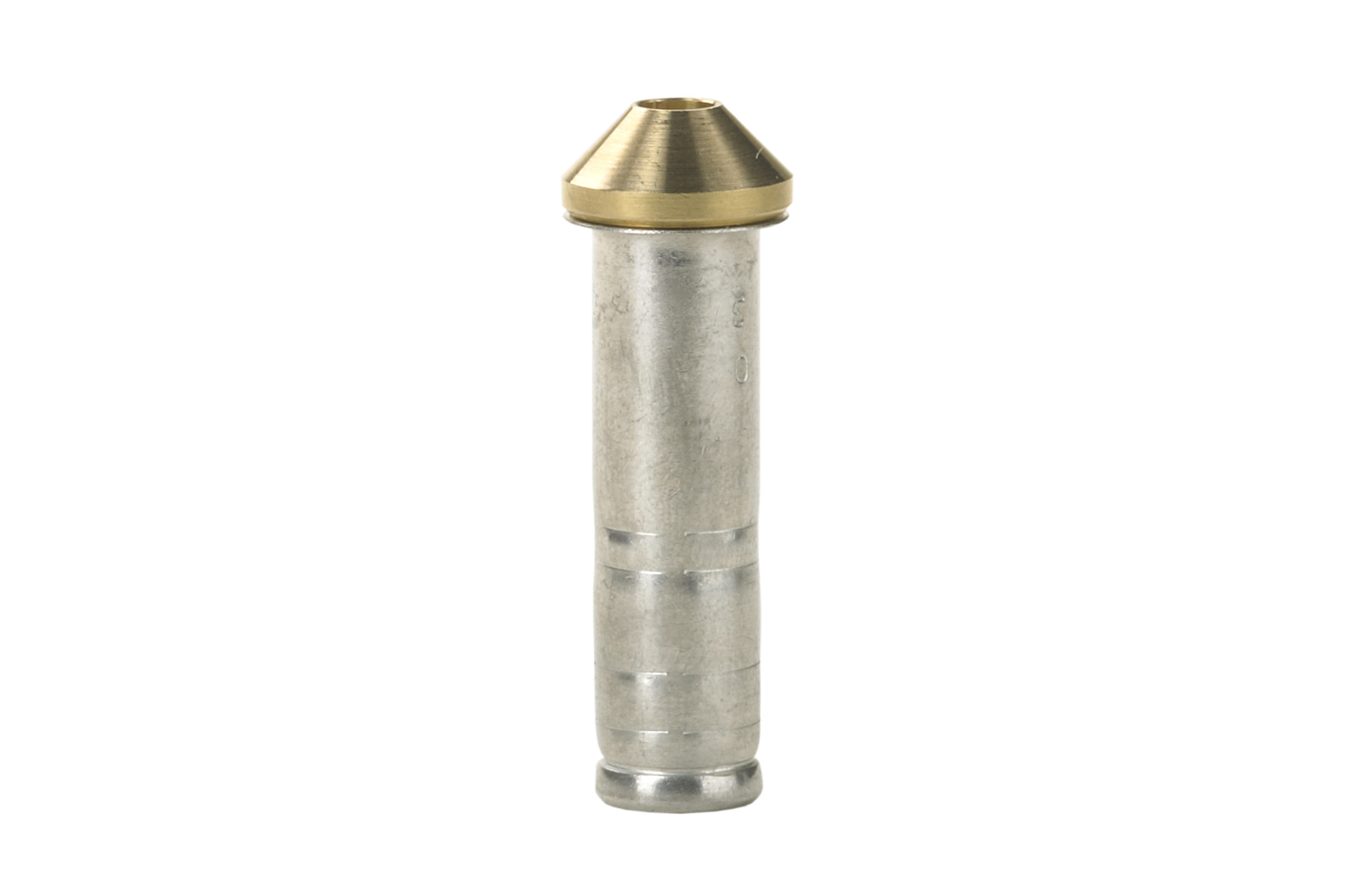

068-2010 T/TE 2 Orifice No: 1
Contact us for more information
068-2010 T/TE 2 Orifice No: 1
Product number:
RDA1346
| Product Group : | T2/TE2 |
|---|
General Information
| Product Group : | T2/TE2 |
|---|---|
| Model Number : | 068-2010 |
| Type : | Orifice |
| Used For : | T 2, TE 2 |
Additional Info
| Family : | T2 |
|---|
Logistical Information
| Commodity Code : | 84819000 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702422014799 |
| Gross Weight : | 0.018 kg |
Measurements
| Weight : | 0.01 kg |
|---|
R134A Performances
| R134a Capacity -10°C Range : | 0.4-1.56 kW |
|---|
R404A Performances
| R404A Capacity -10°C Range : | 0.55-2.2 kW |
|---|---|
| R404A Capacity -30°C Range : | 0.38-1.55 kW |
Refrigerant
| Refrigerant : | R22, R23, R134a, R236fa, R404A, R407A, R407C, R448A, R449A, R452A, R507A, R513A |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Temperature Range : | -40-10 °C |
|---|
Valves
| Design : | SAE flare only |
|---|---|
| Fluid Group : | 1 |
| Orifice : | 1 in |
| Orifice Size : | 01 |
| File name | Extension | Size |
|---|---|---|
| Brochures | 7.14 MB | |
| Technical Literature | 419.93 KB | |
| Conformity Declaration | 454.44 KB |
