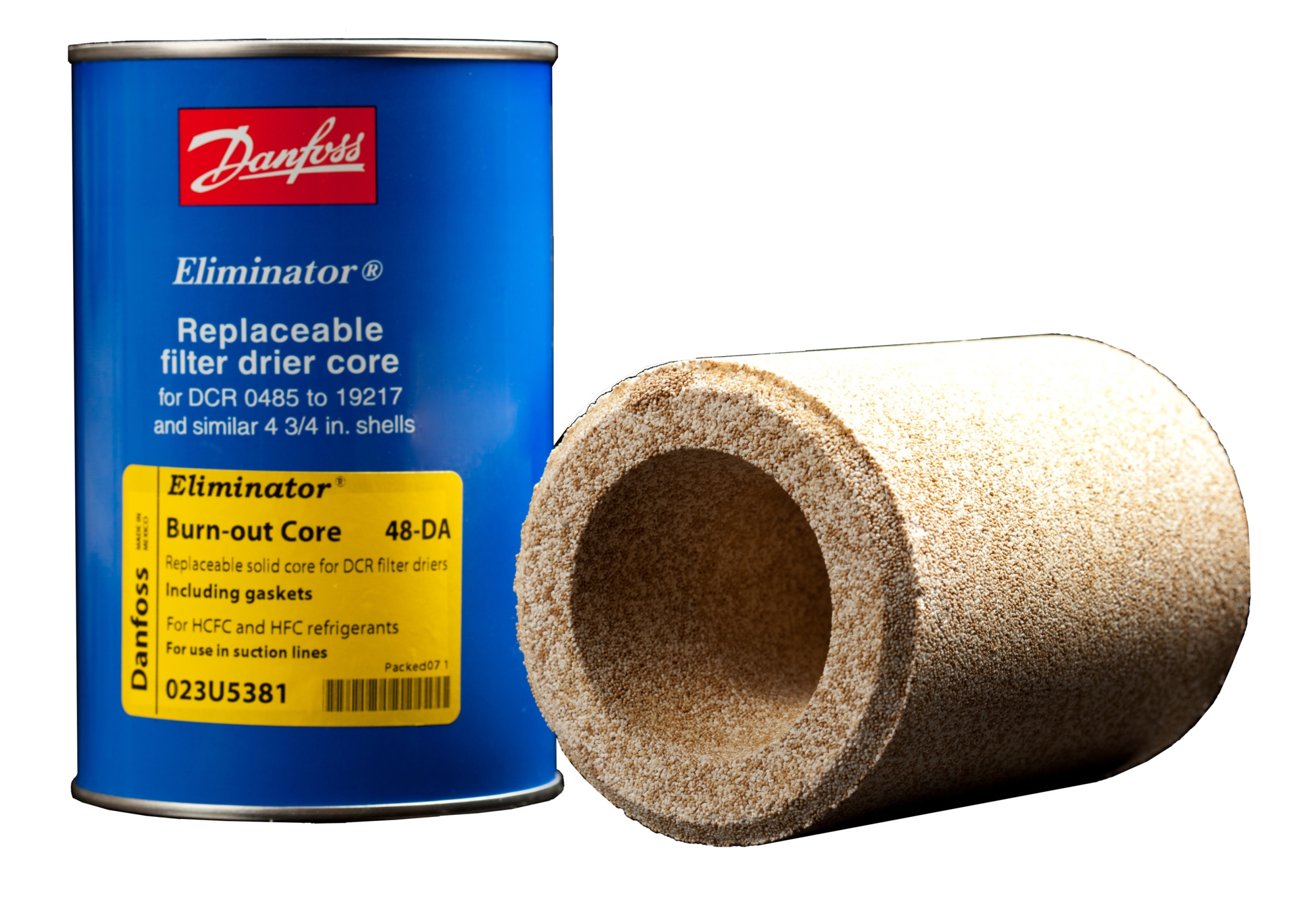

023U5381 Drier Block 48-DA Solid Core for Burnout
Contact us for more information
023U5381 Drier Block 48-DA Solid Core for Burnout
Product number:
RDG7608
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Activated Alumina / Molec. Sieve. : | 70/30 % |
| Model Number : | 023U5381 |
| Parts Included : | 1 x Gasket (023U0743), 2 x Felt gasket (633L5312) |
| Specification Key : | 48-DA |
| Type : | 48-DA |
Additional Info
| Additional Info : | Burnout block |
|---|---|
| Family : | DCR-DA |
Capacity
| Acid Capacity : | 24.85 g |
|---|
Driers
| Core Size : | 48 cu.in. |
|---|---|
| Solid Core Surface : | 95.00 in², 612 cm² |
| Solid Core Volume : | 44.00 in³, 727 cm³ |
Logistical Information
| Commodity Code : | 68159900 |
|---|---|
| Country Of Origin : | MEX |
Measurements
| Net Weight : | 0.82 kg |
|---|---|
| Weight : | 0.82 kg |
Refrigerant
| Refrigerant : | R22/R407C, R134a, R290, R401A, R402A, R404A, R409A, R410A, R421A, R422D, R502, R507A |
|---|
